Installing cover for sliding roof: Notes

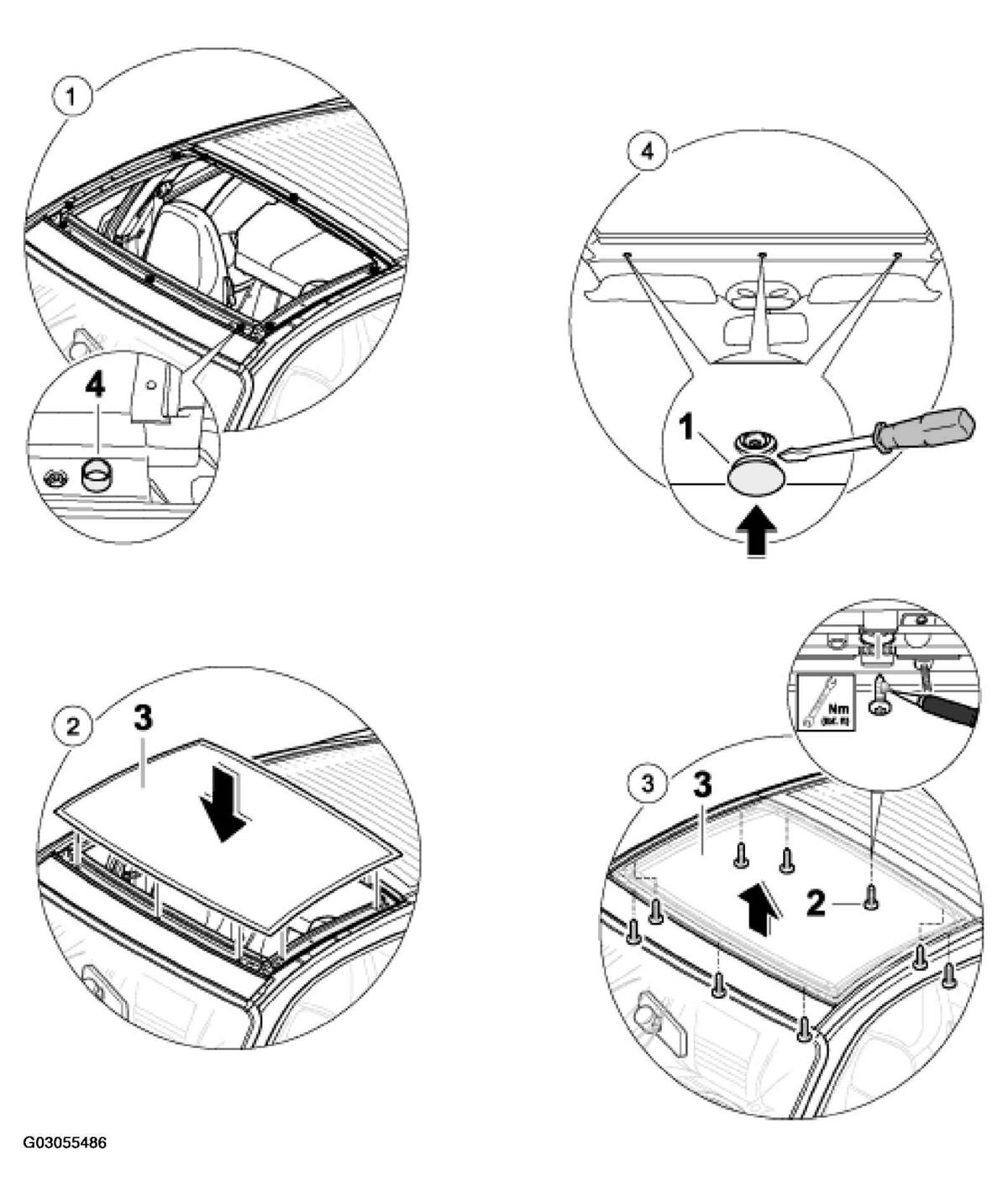

Fig 1: Installing Sliding Roof Cover Components - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SLIDING ROOF COVER INSTALLING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Positioning spacer sleeves	Position spacer sleeves -4- . See Fig 1.
2	Installing cover for sliding roof	Position the cover for the sliding roof -3- . See Fig 1.
3	Screwing in fastening screws	Screw in fastening screws. -Loctite 243- . See Fig 1.
		Use screw locking lacquer -Loctite 243- . See Fig 1.
4	Installing front cap	Press the front cap -1- . See Fig 1.
	Installing electric motor for sun blind	Refer to Removing and installing electric motor for sliding roof sun blind - Targa .
	Installing side fabric lining	See Installing the front fabric lining .
	Installing A-pillar trim	Refer to REMOVING AND INSTALLING A, B AND C-PILLARS - TARGA .
