Removing drive tubing for sun blind: Notes
DRIVE TUBING REMOVING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|
| Removing electric motor for sun blind | See Removing electric motor for sun blind . | |

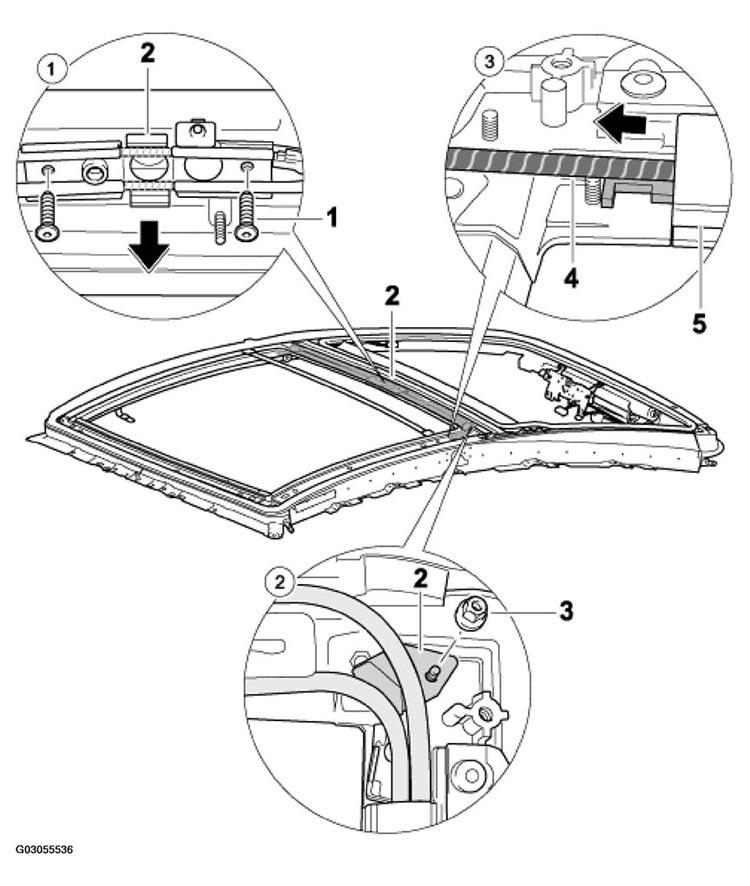

| 1 | Removing drive tubing (metal guide tubes) | Unscrew fastening screws -1-2- . See Fig 1. |
| 2 | Removing left and right drive tubing | Unscrew fastening nuts -3-2-direction of arrow- . See Fig 1. |
| Removing mounting saddle of blind shaft, bracket and support bow | ||
| 3 | Removing input shaft | Pull input shaft -4-5-direction of arrow- . See Fig 1. |
