Removing electric motor for sun blind

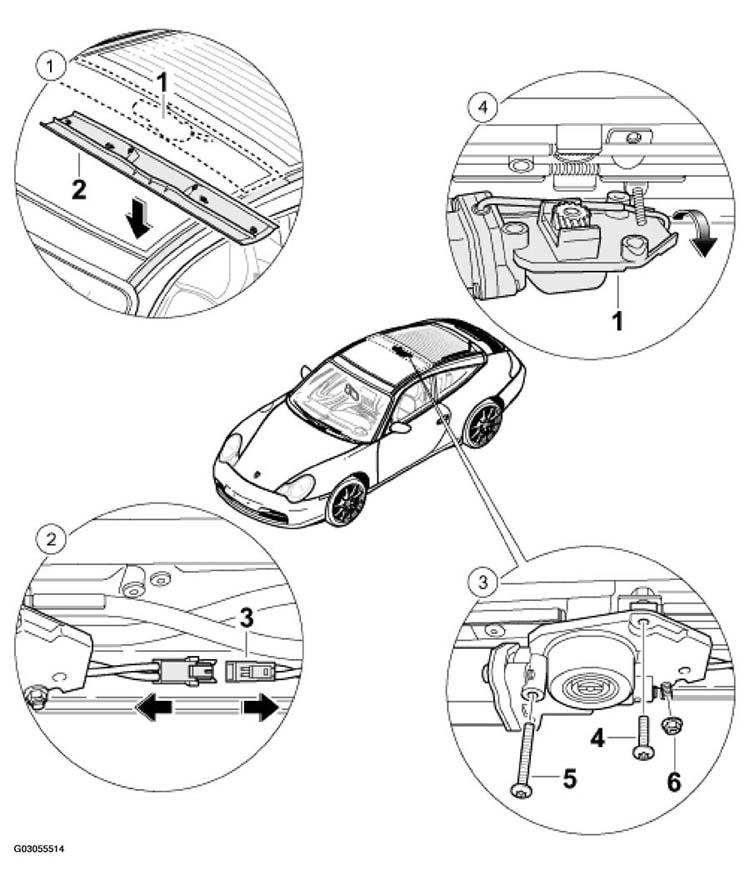

Fig 1: Removing Electric Motor Components For Sun Blind - Targa
G03055514Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • Close sliding roof.
  • Remove ignition key.
  • The electric motor can be removed with the sun blind in any position.
ELECTRIC MOTOR COMPONENTS REMOVING PROCEDURE - TARGA

No. Procedure Instructions
1 Removing cover for electric motor -1-  . See Fig 1. Pull cover -2-direction of the arrow-  . See Fig 1.
2 Disconnecting plug Pull apart electrical plug connection -3-  . See Fig 1.
3 Unscrewing fastenings of electric motor Unscrew fastening screws -4-5-6-  . See Fig 1.
4 Removing the electric motor Pull electric motor -1-direction of the arrow-  . See Fig 1.
