Removing sun blind

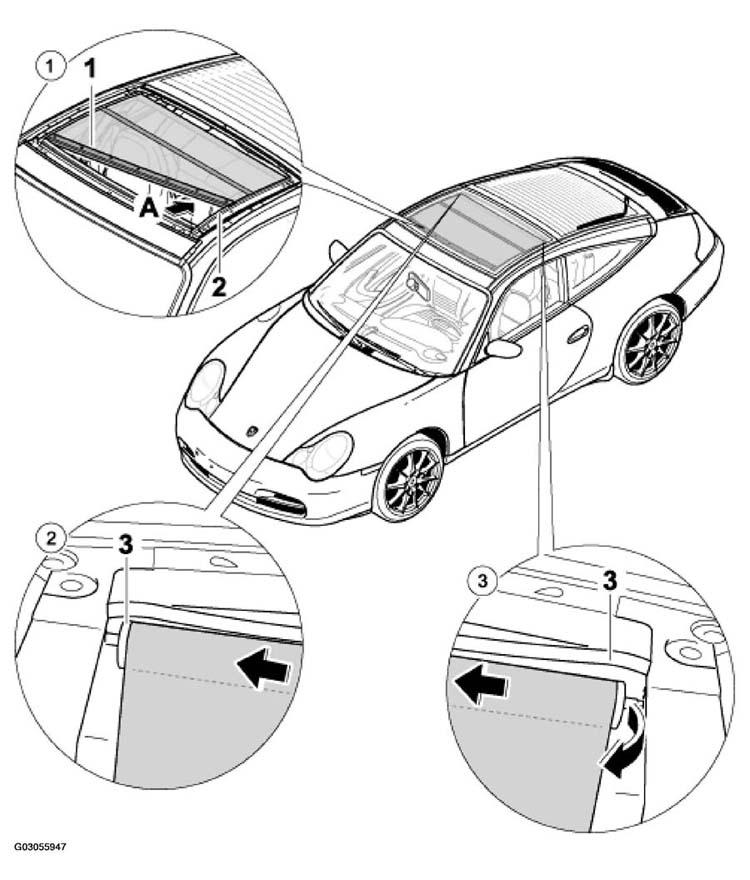

Fig 1: Removing Sun Blind - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SUN BLIND REMOVAL PROCEDURE - TARGA

No.	Procedure	Instructions
	Removing electric motor for sun blind	See REMOVING ELECTRIC MOTOR FOR SUN BLIND .
1	Disengaging guide strut	Move guide strut -1-A-2- . See Fig 1 .
2	Pressing in sun blind	Press in tension axle by moving the sun blind -3-direction of arrow- . See Fig 1 .
3	Extending sun blind	Pull sun blind out of the mounting saddle in -direction of arrow- . See Fig 1 .
