Installing sun blind
SUN BLIND INSTALLATION PROCEDURE - TARGA
| No. | Procedure | Instructions |
|---|---|---|

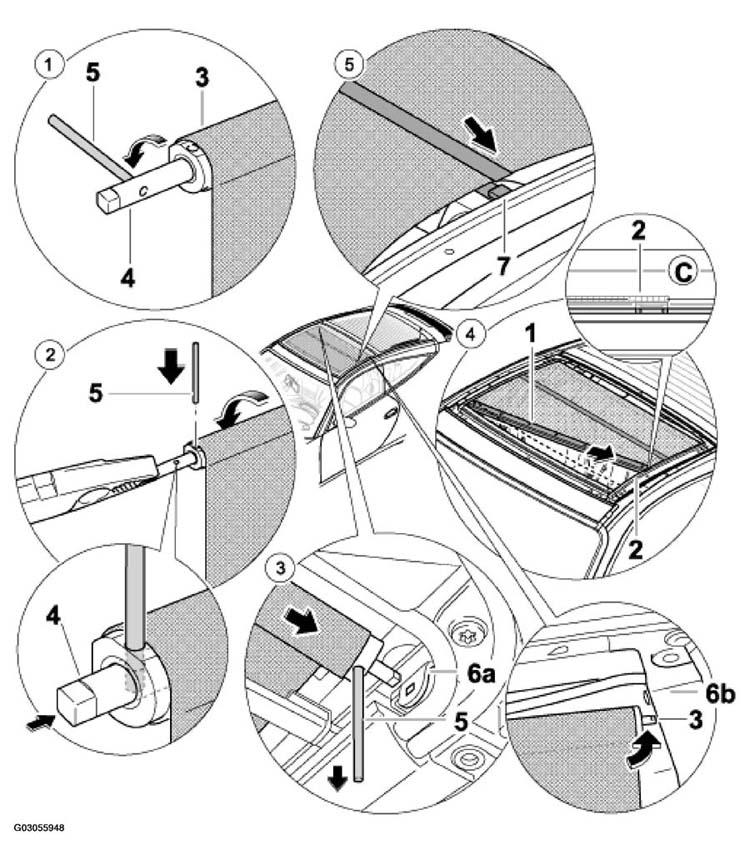

| 1 | Tensioning sun blind to roll up | Tension sun blind to roll up -4- . Tension tensioning axle -4- . See Fig 1 . |
| 2 | Pressing in and fixing tensioning axles | Hold the square with a pair of combination pliers and press in the tensioning axle -4-direction of arrow-3- . See Fig 1 . |
| 3 | Install sun blind | Insert tensioning axle -4-6a-6b-direction of arrow- . See Fig 1 . |
| 4 | Installing guide strut | Position the sun blind above the holding strut. Insert guide strut -1-2-inset C- . See Fig 1 . |
| 5 | Engaging sun blind into bracket | Insert sun blind into the bracket -7-direction of arrow- . See Fig 1 . |
| Installing support bow | ||
| Installing electric motor for sun blind | See INSTALLING ELECTRIC MOTOR FOR SUN BLIND . |
