Removing and installing front emergency release, -as of MY 2003: Notes

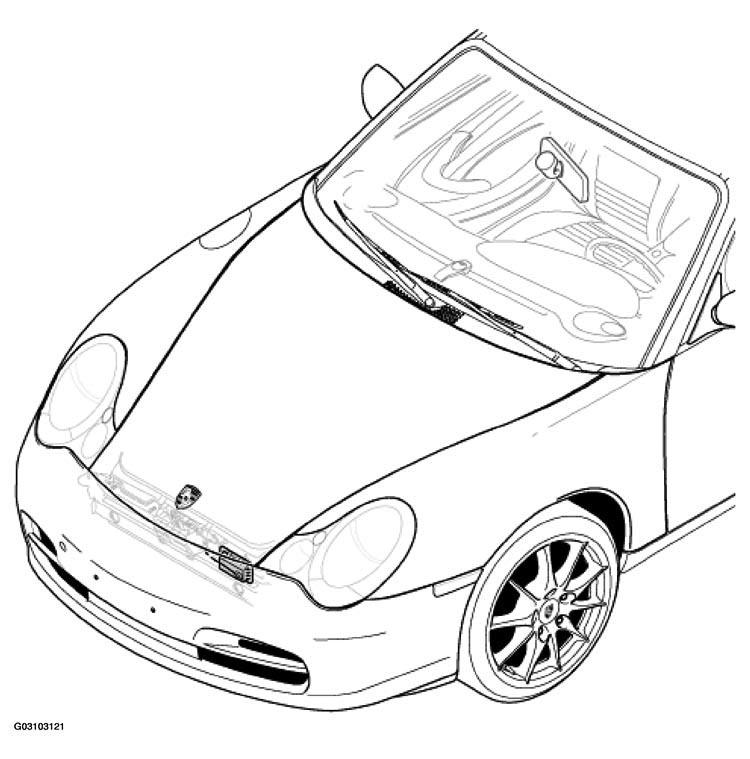

Fig 1: Locating Front Emergency Release - As Of MY 2003

Courtesy of PORSCHE OF NORTH AMERICA, INC.

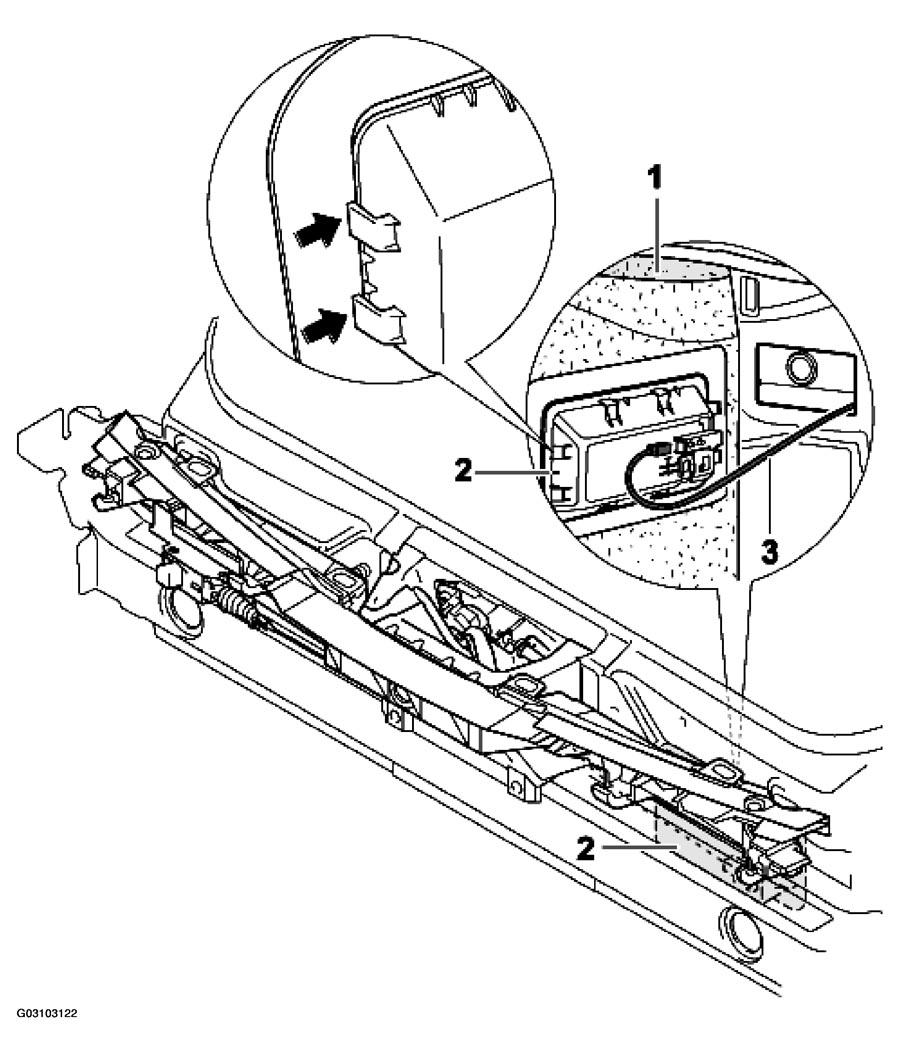

Fig 2: Removing And Installing Front Emergency Release - As Of MY 2003

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT EMERGENCY RELEASE REMOVAL AND INSTALLATION PROCEDURE CHART - AS OF MY 2003

No.	Designation	Qty.	Removal	Installation
1	Luggage compartment lining	1	Partly loosen luggage compartment lining.	Install luggage compartment lining.
2	Handle liner, emergency release	1	Unclip handle liner -2-,-1--arrows-	Clip handle liner -2-,-1-
3	Electrical plug connection	1	Disconnect electrical plug connection -3-	Plug in electrical plug connection -3-
				Refer to CHECKING INNER RELEASE OF LUGGAGE COMPARTMENT (TRUNK ENTRAPMENT)
