Checking inner release of luggage compartment (Trunk Entrapment)

Danger!

  1. Engage the upper part of the lock 996 551 051 02 = tool (Porsche spare part) in the lower part of the lock -direction of arrow-.

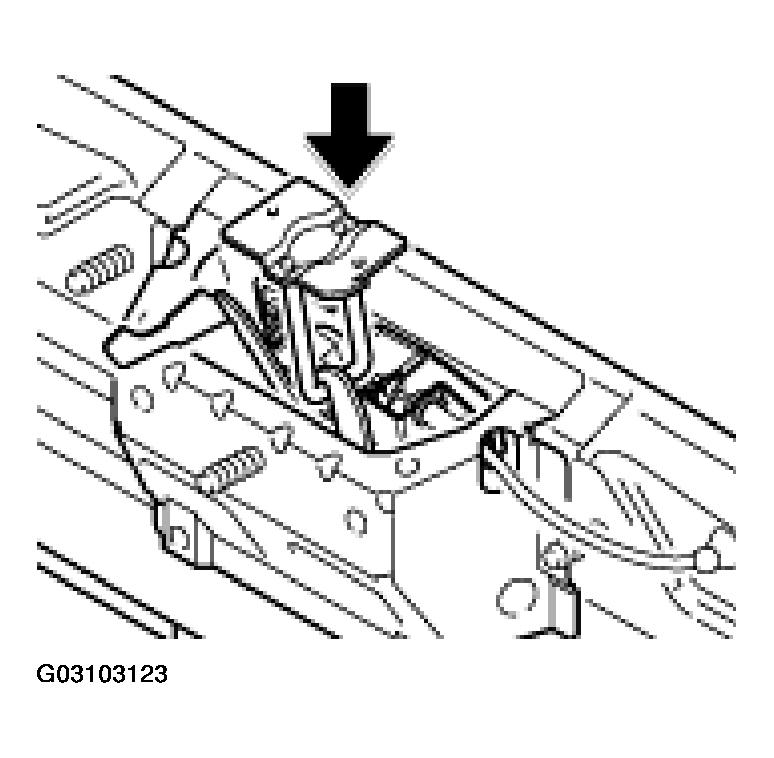

    Fig 1: Engaging Upper Part Of Luggage Compartment Lock In Lower Part Of Lock
    G03103123Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Unlock unlocking lever in the luggage compartment. Check whether the upper part of the lid lock disengages automatically.
