Installing wiring harness

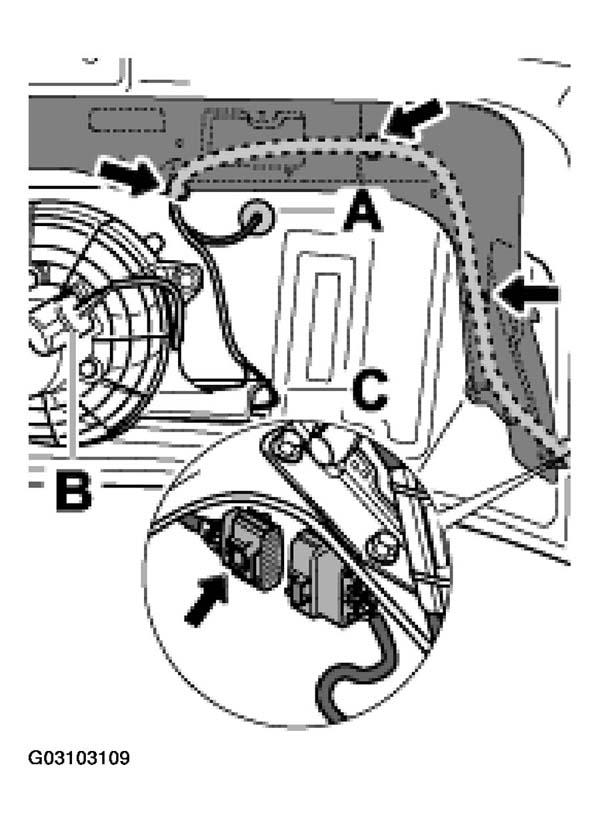

  1. Lay the wiring harness and mount with the fastening clips from the inner side of the mount in the positions specified -arrows-.  Refer to Figure . Connect the plug -C-  for the engine compartment lighting and -B-  for the engine compartment fan. Push the plug with the grommet -A-  through the opening in the rear lid until the grommet can be pushed into place.
  2. Plug in the electrical plug connection.
  3. Installing additional brake light. See: REMOVING AND INSTALLING ADDITIONAL BRAKE LIGHT
