Removing and installing additional brake light

  1. Removing additional brake light
    1. Unclip cover -A-  at the sides, unlock lock -B-.  Remove brake light and disconnect plug connection -C-.

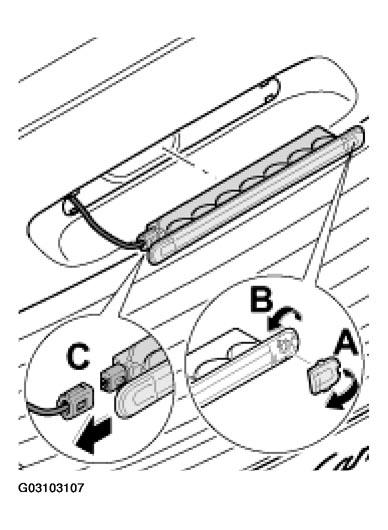

    Fig 1: Removing Additional Brake Light
    G03103107Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Installing additional brake light
    1. Push on plug -C-.  Insert brake light. Lock the lock -B-.  Clip in the cover -A-.

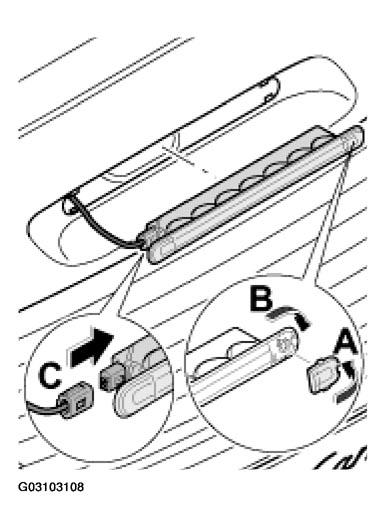

    Fig 2: Installing Additional Brake Light
    G03103108Courtesy of PORSCHE OF NORTH AMERICA, INC.
