Removing and installing inner door release (bowden cable) for door lock
CAUTION:
Damage to the bowden cable when removing door trim panel or by bending the bowden cable at the hook!
- Pull the hook out of the end piece only after installation in the inner door release!

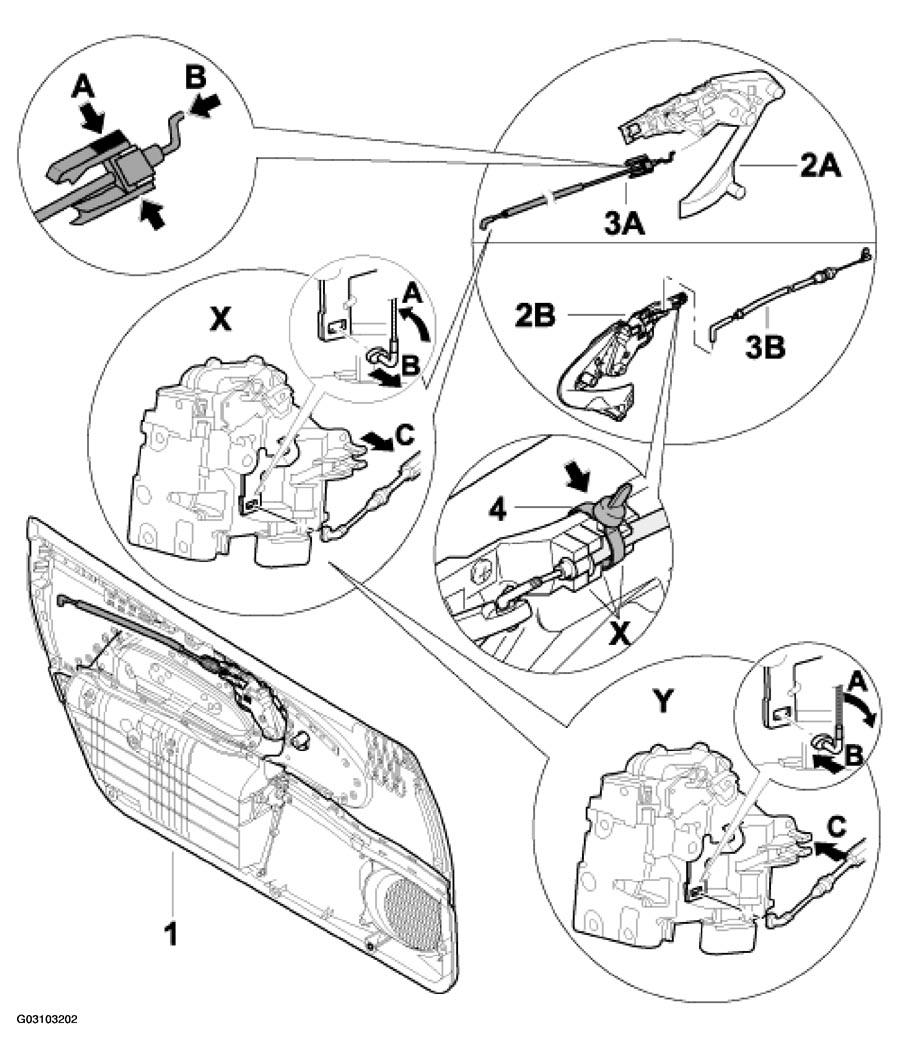

INNER DOOR RELEASE (BOWDEN CABLE) REMOVAL AND INSTALLATION PROCEDURE AND INSTRUCTION
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|

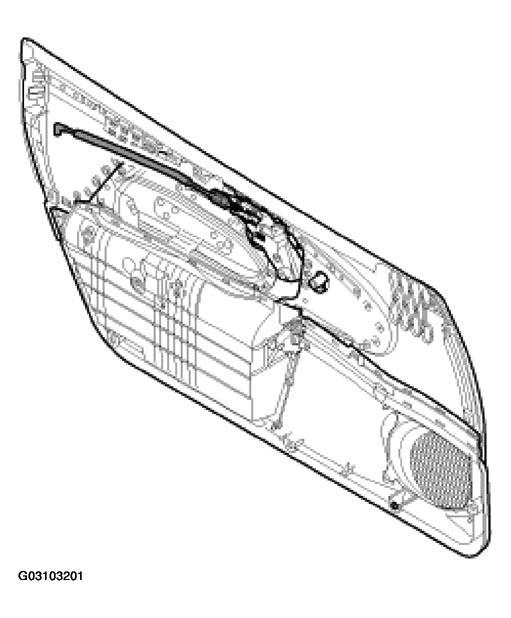

| 1 | Door trim panel | 1 | Refer to REMOVING AND INSTALLING DOOR TRIM PANEL, - AS OF MY 1997 . | |
| 2A | Door handle | 1 | Refer to REMOVING AND INSTALLING DOOR HANDLE . | Parts of variant A can be only be installed together. |
| 2B | Door handle | 1 | Refer to REMOVING AND INSTALLING DOOR HANDLE . | Parts of variant B can be only be installed together. |
| 3A | Bowden cable Bowden cable variant A from Vehicle Identification Numbers 99 ZXS 60 0958 RoW 99 ZXS 64 0513 RoW 99 9XS 62 3890 USA 99 1XS 65 2308 USA |
1 | Door handle side: -A, -B-, lnset X-C-A-B- Press the lugs of the plastic clip -A-B-, lnset X-C-A-B- |
Door handle side: -2-lnset, Y-B-A-C- Insert bowden cable in the door handle -2--Inset, Y-B-A-C- |
| 3B | Bowden cable | 1 | Door handle side: -4--lnset X-C-A-B- Cut tie-wrap -4-Inset X-C-A-B- |
Door handle side: -2A-X-lnset Y--B-A--C- Insert bowden cable in the door handle -2A-X-lnset Y-B-A-C- |
