Removing and installing door handle

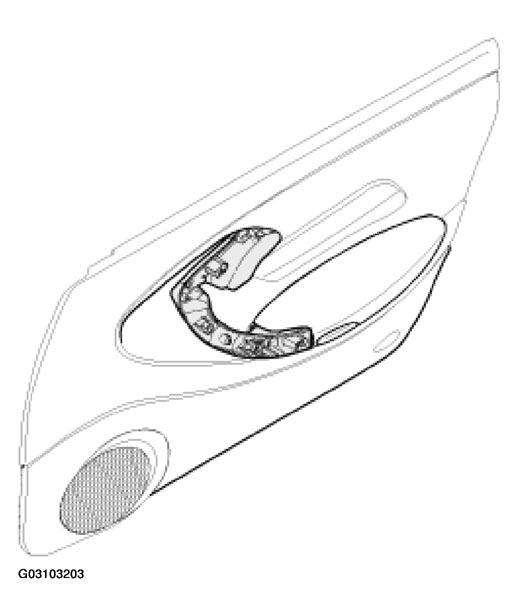

Fig 1: Identifying Inside Door Handle

Courtesy of PORSCHE OF NORTH AMERICA, INC.

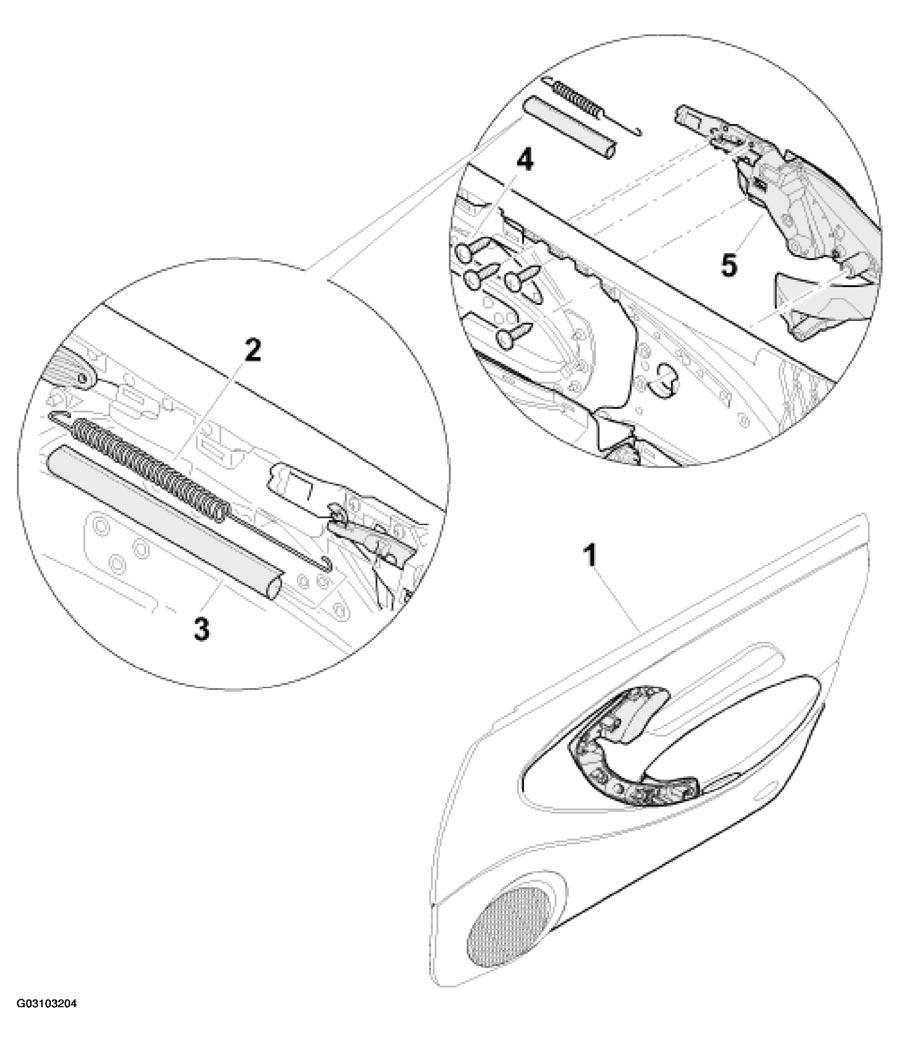

Fig 2: Removing And Installing Inside Door Handle

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DOOR HANDLE REMOVAL AND INSTALLATION PROCEDURE AND INSTRUCTION

No.	Designation	Qty.	Removal	Installation
1	Door trim panel		Refer to REMOVING AND INSTALLING DOOR TRIM PANEL, - AS OF MY 1997
2	Return spring -2-	1	circlip from the door handle -5-, -1-	Clip into the door handle-5-, -1-
3	Sleeve	1	Pull off from the return spring -2-	Put onto the return spring -2-
4	Oval-head screw 4.2x13	4
5	Door handle-5-	1	Undo oval-head screws-4-, -1-	Insert door handle -5-, -1-4-
