Removing rear bumper

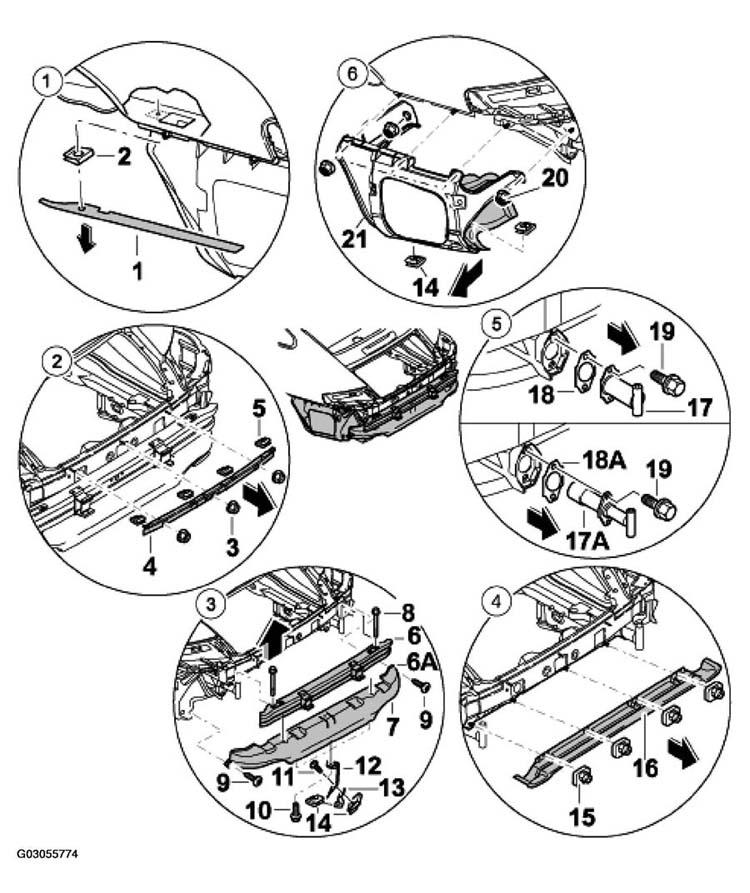

Fig 1: Removing Rear Bumper Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR BUMPER COMPONENTS REMOVING PROCEDURE

No.	Procedure	Instructions
	Removing rear spoiler	See REMOVING REAR SPOILER .
1	Removing anti-chafing film -1- . See Fig 1 .	Pull off anti-chafing film -1-2- . See Fig 1 .
2	Removing centre retaining strip -5- . See Fig 1 .	Screw off collar nuts -3-4-5- . See Fig 1 .
3	Removing and disassembling rear bumper -6--(6A)- . See Fig 1 .	Unscrew sheetmetal screws -9-8-6, (6A)-7-10-7-12-11- . See Fig 1 .
4	Removing centre heat shield on top -16- . See Fig 1 .	Screw off collar nuts -15-16- . See Fig 1 .
5	Removing impact pipe -17-17 A- . See Fig 1 .	Unscrew fastening screws -19-17-17 A-18-18 A- . See Fig 1 .
6	Removing heat shield at the sides -21- . See Fig 1 .	Screw off collar nuts -20-21- . See Fig 1 .
