Removing rear spoiler

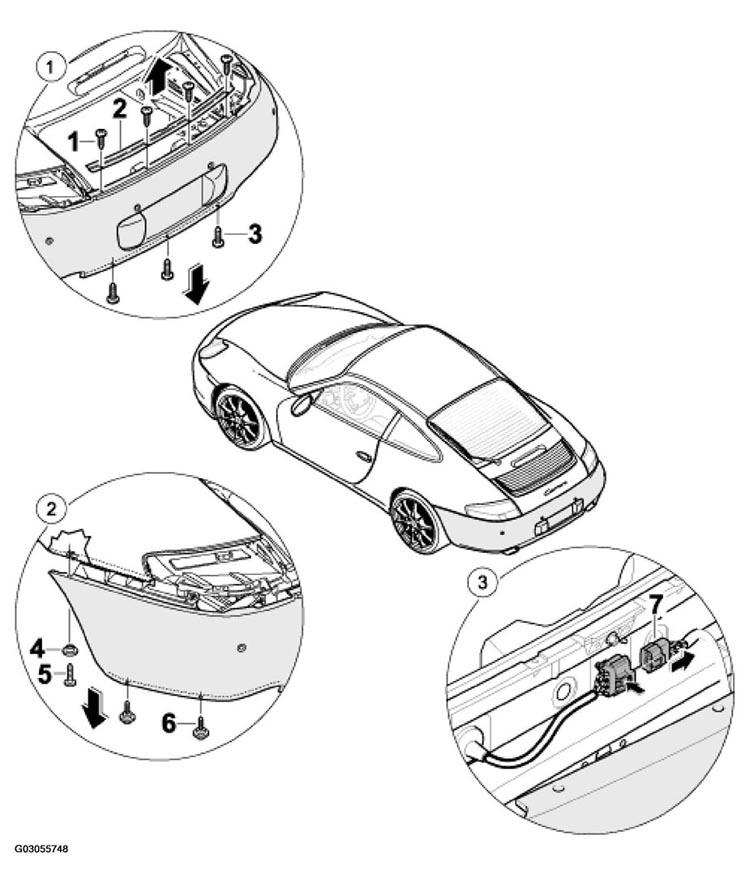

Fig 1: Removing Rear Spoiler Components
G03055748Courtesy of PORSCHE OF NORTH AMERICA, INC.
REAR SPOILER COMPONENTS REMOVING PROCEDURE

No. Procedure Instructions
1 Removing cover mounting Unscrew fastening screws -1-3-2-  . See Fig 1 .
2 Unscrewing fastening screws Unscrew fastening screws -5, 6-4-  . See Fig 1 .
3 Disconnecting the plug connection Remove rear spoiler Press lug -arrow-7-  . See Fig 1 .
