Installing front spoiler
FRONT SPOILER INSTALLING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

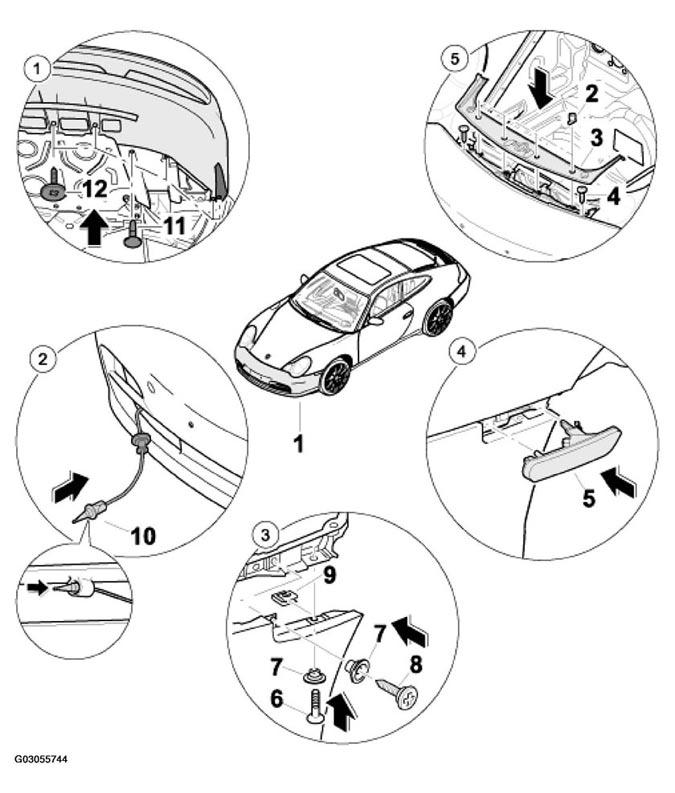

| 1 | Fitting front spoiler on the underbody | Position front spoiler over the bumper mount on the vehicle. Screw in the fastening screws on the underbody -10- . See Fig 1 . |
| 2 | Fitting front spoiler at the sides. | Affix front spoiler to the retaining strip and fasten it with the sheetmetal screw -6-7- . See Fig 1 . |
| 3 | Fitting cover | Fasten the front end -1-4-7-3-2- . See Fig 1 . |
| 4 | Fitting direction indicator light | Insert electrical plug connection of the direction indicator light -5-arrow-1- . See Fig 1 . |
| 5 | Press in temperature sensor | Press temperature sensor-9- . See Fig 1 . |
