Disassembling rear spoiler

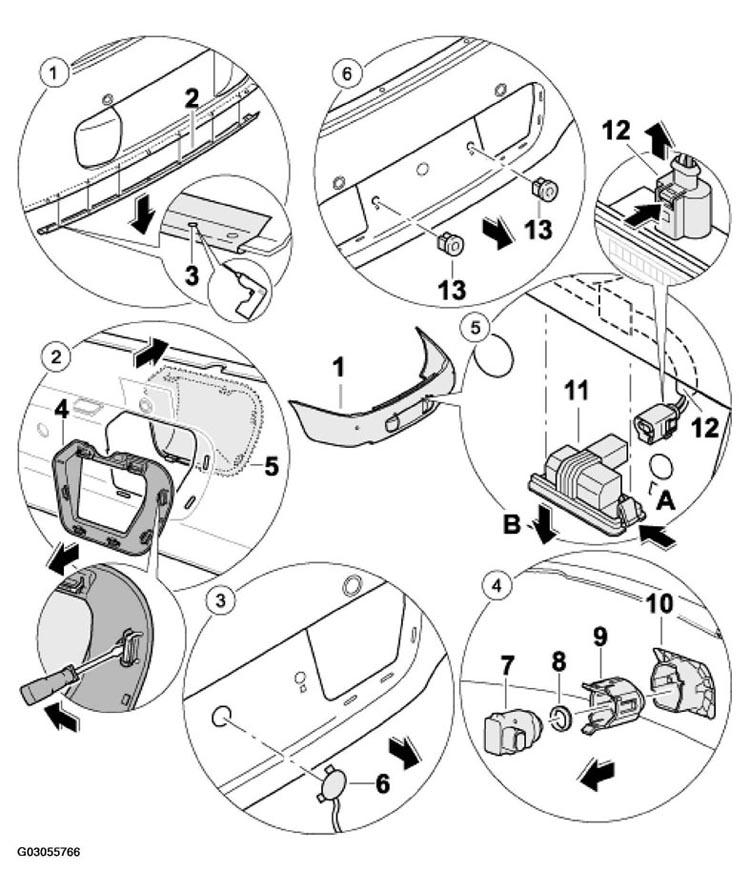

Fig 1: Disassembling Rear Spoiler - As From Model Year 2002

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR SPOILER COMPONENTS DISASSEMBLING PROCEDURE - AS FROM MODEL YEAR 2002

No.	Procedure	Instructions
	Removing rear spoiler	See REMOVING REAR SPOILER .
1	Removing lower retaining strip -2- . See Figure .	Bore out rivets -3-2- . See Figure .
2	Removing impact horns -4, 5- . See Figure .	Insert a screwdriver laterally into the inner retaining bracket -4-5- . See Figure .
3	Removing the cover	Remove the cover -6- . See Figure .
4	Removing parking assistant sensor -7- . See Figure .	Disengage parking assistant sensor -7-8-9-10- . See Figure . Refer to REMOVING AND INSTALLING SENSOR FOR PARKASSISTENT .
5	Removing licence plate light	Press the lug -A-direction of arrow B-arrow-12- . See Figure .
6	Pressing out plastic clips	Press out plastic clips -13- . See Figure .
