Removing rear spoiler

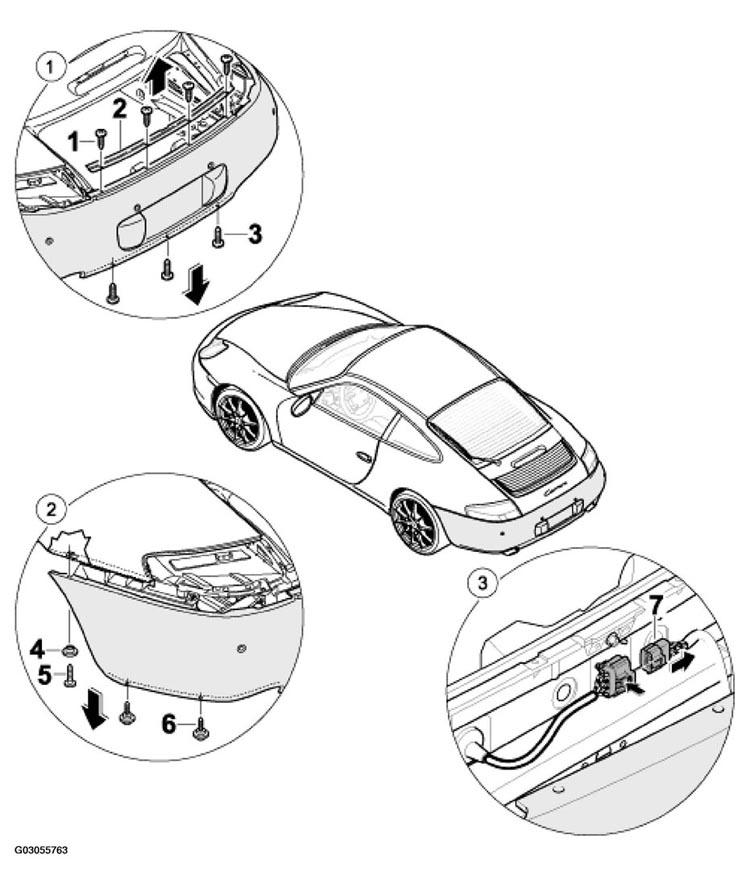

Fig 1: Removing Rear Spoiler Components -- As From Model Year 2002

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR SPOILER COMPONENTS REMOVING PROCEDURE - AS FROM MODEL YEAR 2002

No.	Procedure	Instructions
1	Removing cover moulding -2-1- . See Fig 1 .	Unscrew sheetmetal screws -1-3-2- . See Fig 1 .
2	Unscrewing sheetmetal screws -5, 6- . See Fig 1 .	Unscrew sheetmetal screws -5, 6-4- . See Fig 1 .
3	Disconnecting plug connection -7- . See Fig 1 .	Press lug -arrow-7- . See Fig 1 .
	Remove rear spoiler.
