Assembling rear spoiler

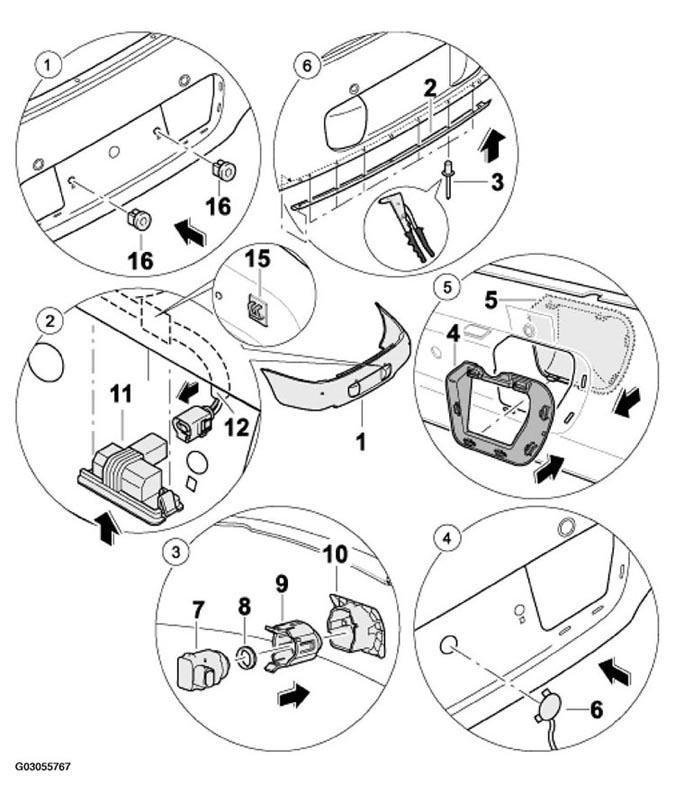

Fig 1: Assembling Rear Spoiler Components - As From Model Year 2002

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR SPOILER COMPONENTS ASSEMBLING PROCEDURE - AS FROM MODEL YEAR 2002

No.	Procedure	Instructions
1	Installing plastic clips	Press plastic clips -13- . See Fig 1 .
2	Installing licence plate light	Connect electrical plug connection -12-11- . See Fig 1 .
3	Installing parking assistant sensor -7- . See Fig 1 .	Clip installation housing -9-10-7-8-9- . See Fig 1 . Refer to REMOVING AND INSTALLING SENSOR FOR PARKASSISTENT .
4	Clipping in cover -6- . See Fig 1 .	Pull new securing cord into the cover -6-1- . See Fig 1 .
5	Installing impact horns -5- . See Fig 1 .	Position impact horn -5-4- . See Fig 1 .
6	Installing lower retaining strip -2- . See Fig 1 .	Push on lower retaining strip -2-3- . See Fig 1 .
	Installing rear spoiler	See INSTALLING REAR SPOILER .
