Disassembling front apron

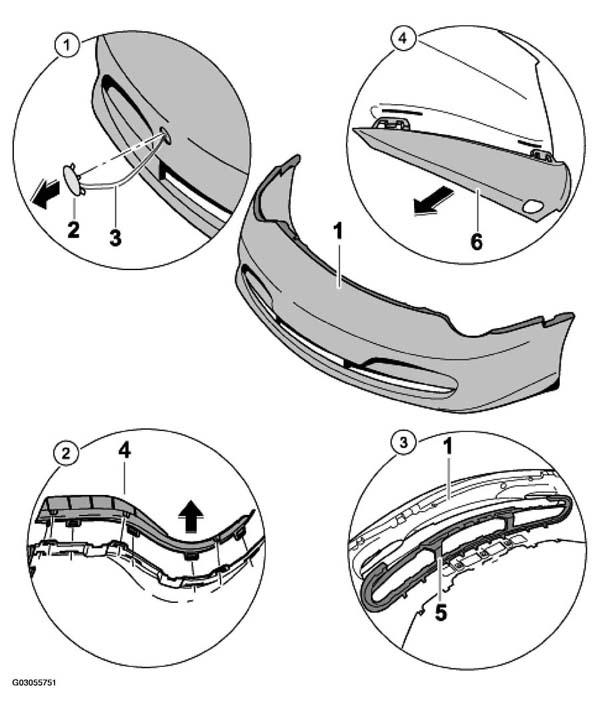

Fig 1: Disassembling Front Apron Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT APRON COMPONENTS DISASSEMBLING PROCEDURE

No.	Procedure	Instructions
	Removing front apron	See REMOVING FRONT SPOILER .
1	Removing cover cap	Carefully press out covering cap -2-3-1-2- . See Fig 1 .
2	Removing covering frame	Insert a plastic spatula between front apron -1-4-4- . See Fig 1 .
3	Removing grille frame	Insert a plastic spatula between front apron -1-5-5- . See Fig 1 .
4	Panel	Insert a plastic spatula between front apron -1-6-6- . See Fig 1 .
