Assembling front apron

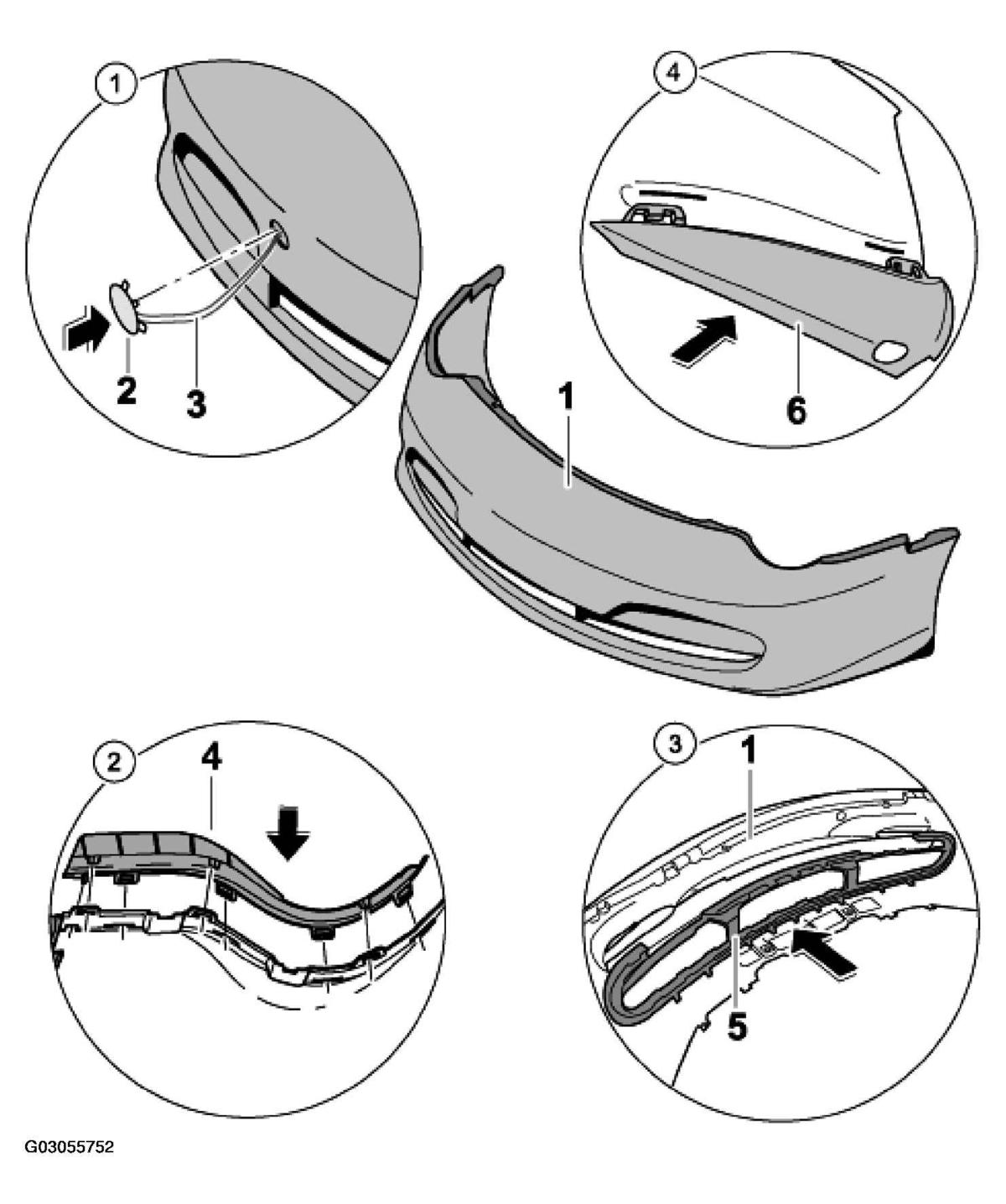

Fig 1: Assembling Front Apron Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT APRON COMPONENTS INSTALLING PROCEDURE

No.	Procedure	Instructions
1	Installing grille frame	1. Position grille frame -5- all the way round in the pegs of front apron -1- . See Fig 1 .
		2. Press grille frame -5- into front apron -1- until the locking tabs audibly engage. See Fig 1 .
2	Installing covering frame	1. Position covering frame -4- all the way round in the pegs of front apron -1- . See Fig 1 .
		2. Press covering frame -4- into front apron -1- until the locking tabs audibly engage. See Fig 1 .
3	Installing cover cap	Pull securing cord through the eyelet in covering cap -2-1- . See Fig 1 .
4	Panel	1. Position panel -6- all the way round in the pegs of front apron -1- . See Fig 1 .
		2. Press panel -6- into front apron -1- until the locking tabs audibly engage. See Fig 1 .
	Installing front apron	See INSTALLING FRONT SPOILER .
