Water drainage plan - Targa

A water drainage facility -1-4 is available on both sides of the vehicle.

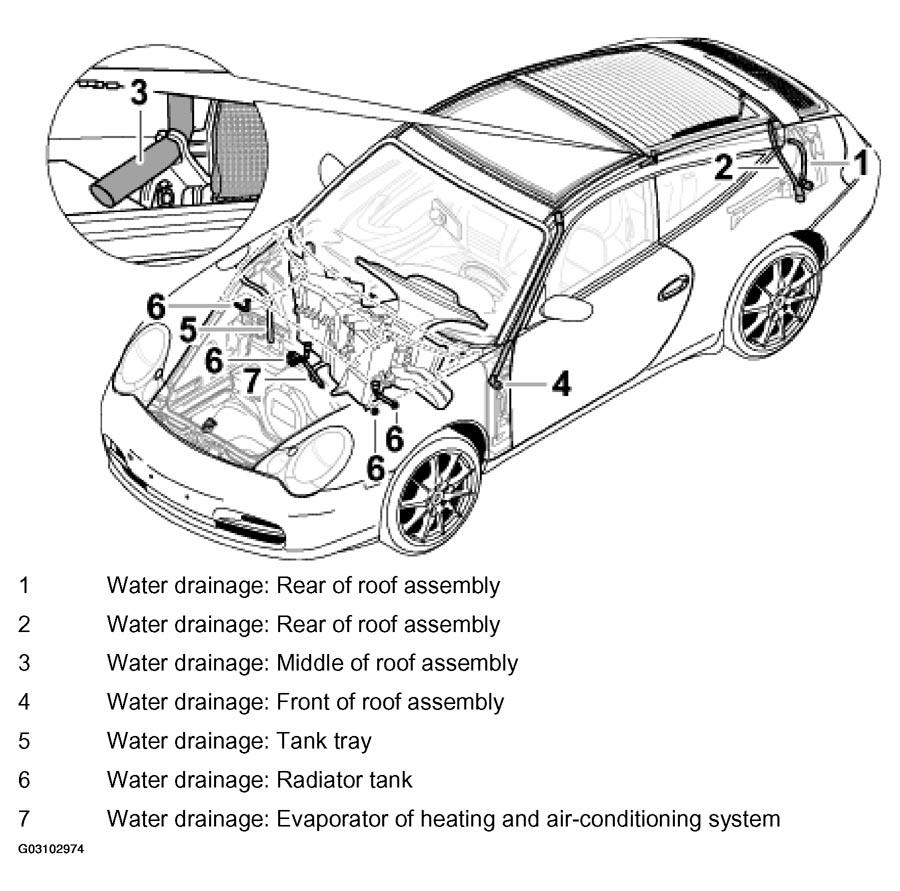

Fig 1: Identifying Water Drainage Plan - Targa

G03102974

Courtesy of PORSCHE OF NORTH AMERICA, INC.
