Body, General Information - 911 CARRERA (996): Undersealing: Notes

NOTE:

• In the case of repair work, the standard stone shield/undersealing of the body structure must be restored before painting or unit assembly, according to the following illustrations.
• The undersealing can only be applied to primed sheetmetal.

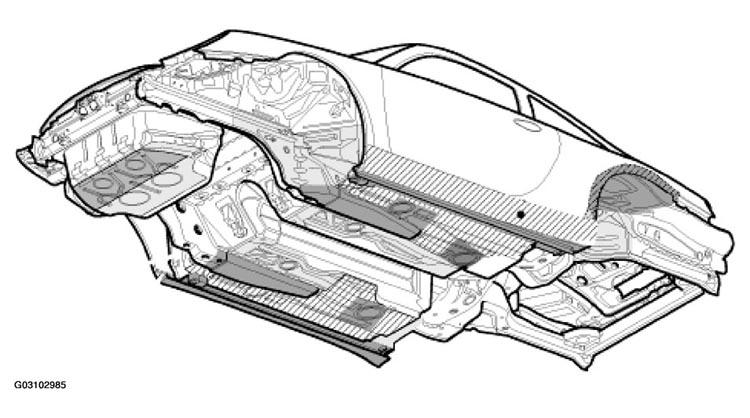

Fig 1: Identifying Undersealing

Courtesy of PORSCHE OF NORTH AMERICA, INC.
