Bottom of lower side member and floor, layout plan

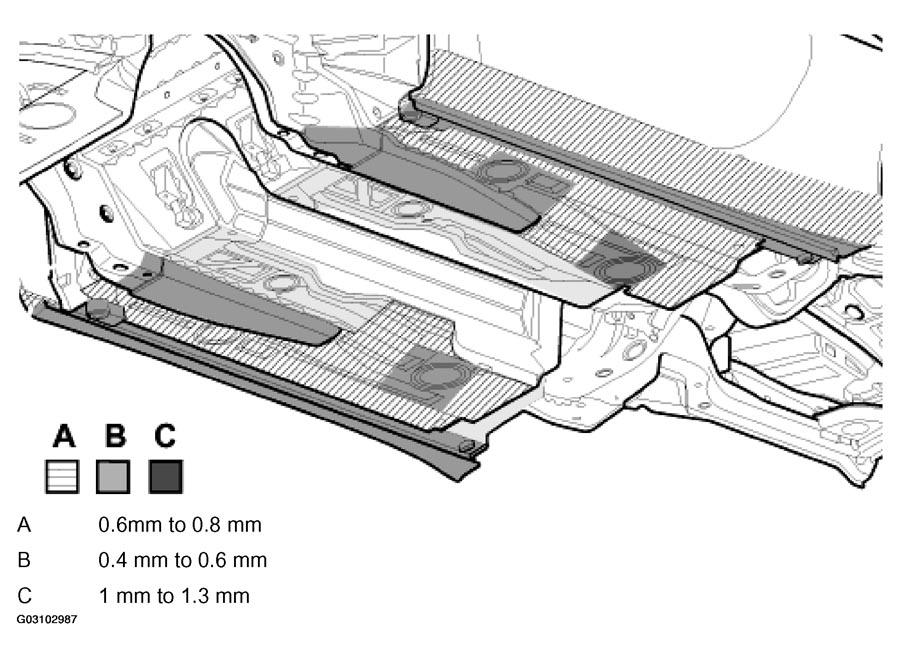

Fig 1: Identifying Undersealing - Bottom Of Lower Side Member And Floor, Layout Plan

G03102987

Courtesy of PORSCHE OF NORTH AMERICA, INC.
