Bottom of front of vehicle, layout plan

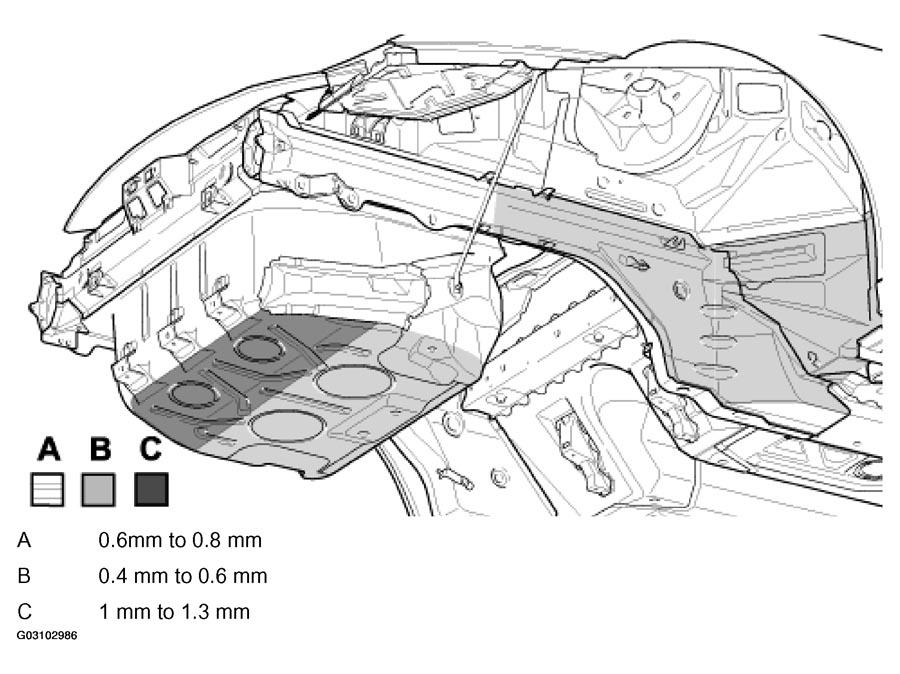

Fig 1: Identifying Undersealing - Bottom Of Front Of Vehicle, Layout Plan

G03102986

Courtesy of PORSCHE OF NORTH AMERICA, INC.
