Seam seals: Accessories

NOTE:

Due to modifications to the spare part range, in the case of repair work, accessories must be sealed before assembly (painting) according to the following illustrations.
The sealing material 000043 204 38 can be applied directly to the acessories coated with KTL paint (cathodic dipbath coating).
The seam seal can be painted over when it has reached approx. 70 % hardness (approx. 4 -5 hat 20 "C, 50 % relative air humidity. Higher air humidity or dampening with water accelerates the hardening process).
The hardening can be checked with a nail test. Press a finger nail gently into the hardened sealing mass; if this causes no damage to the sealing mass surface, the seam seal can be painted.

Front lid

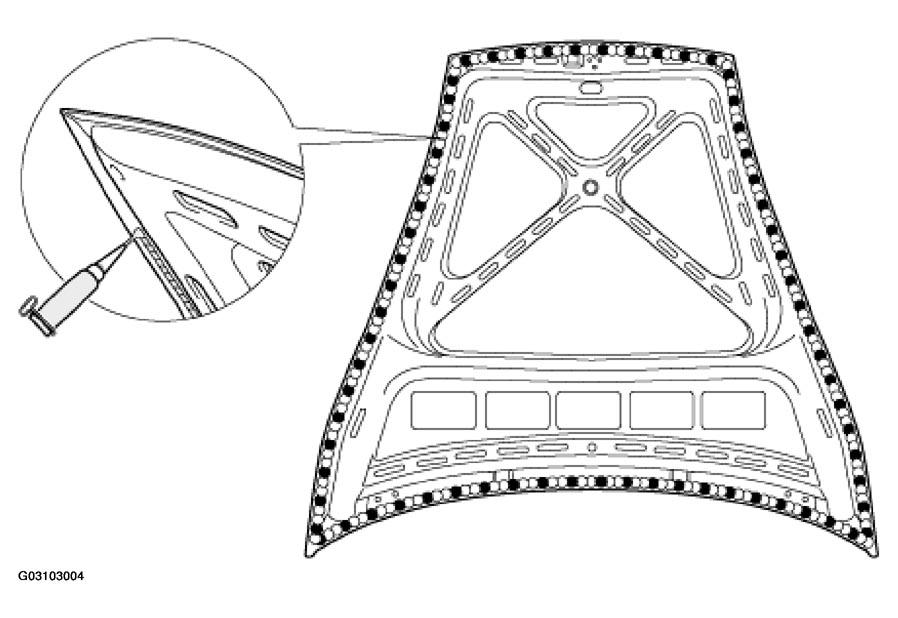

Fig 1: Identifying Seam Seals (Front Lid)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Doors

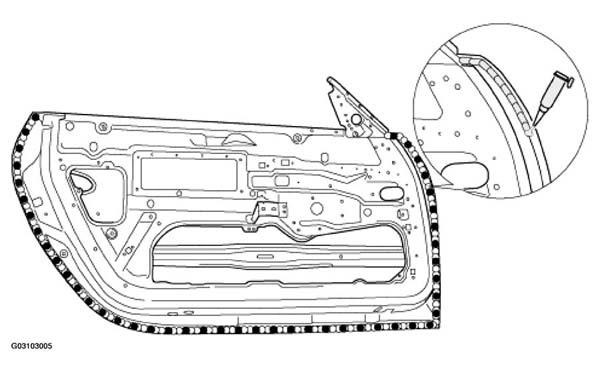

Fig 2: Identifying Seam Seals (Door)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Sliding roof panel

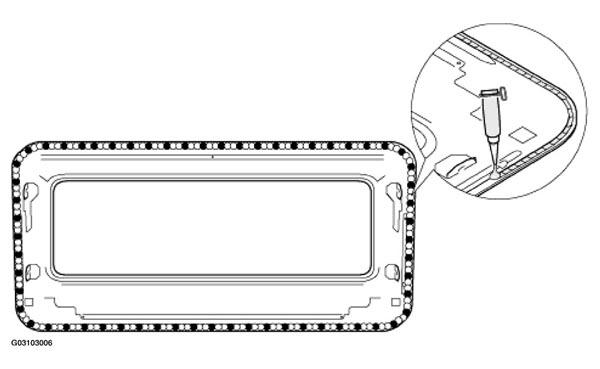

Fig 3: Identifying Seam Seals (Sliding Roof Panel)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Rear lid

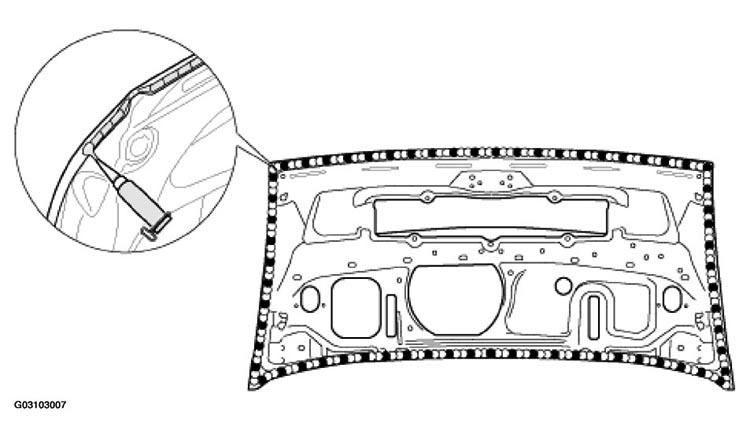

Fig 4: Identifying Seam Seals (Rear Lid)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
