Top of rear end

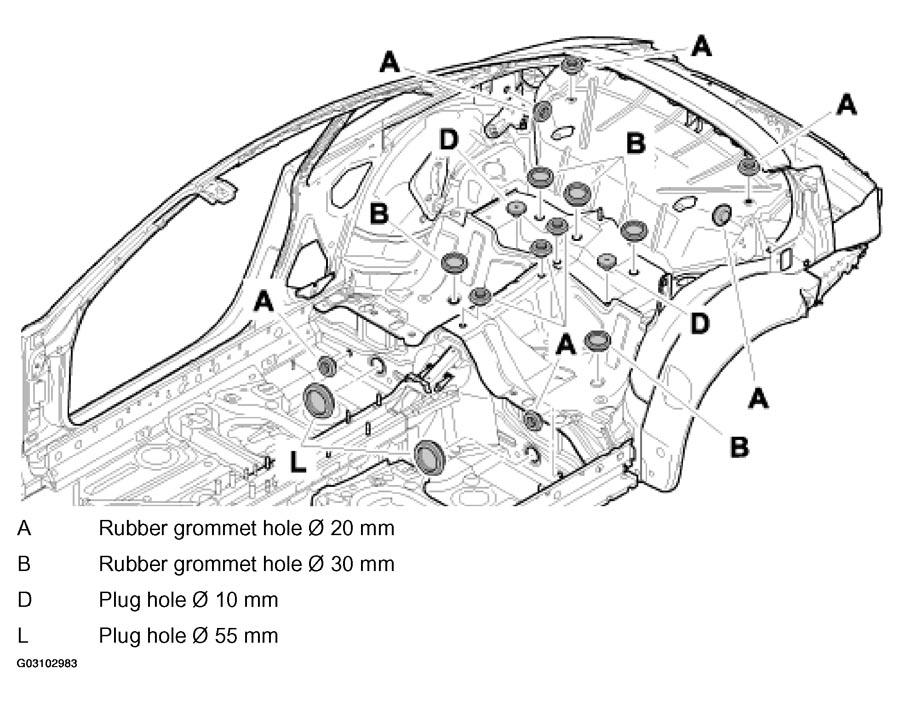

Fig 1: Identifying Plug Location Plan - Top Of Rear End

G03102983

Courtesy of PORSCHE OF NORTH AMERICA, INC.
