Home >> Porsche >> 2003 >> 911 Carrera 4S, Standard >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Body, General Information - 911 CARRERA (996) >> Plug location plan >> Side of rear end

Side of rear end

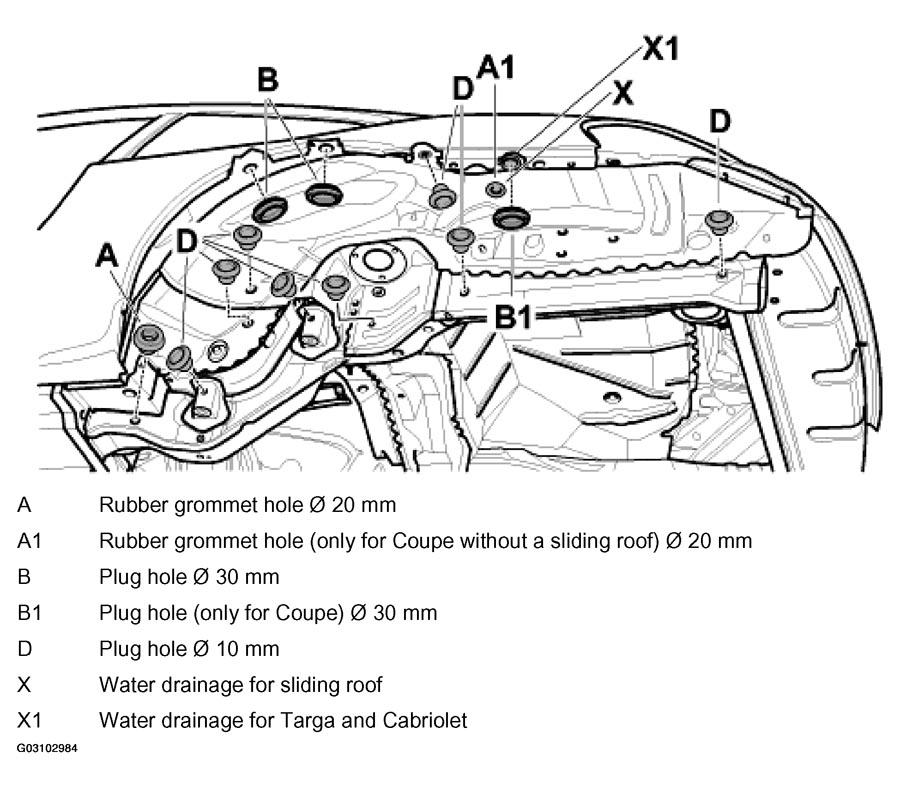

Fig 1: Identifying Plug Location Plan - Side Of Rear End

G03102984

Courtesy of PORSCHE OF NORTH AMERICA, INC.
