Bottom of rear end

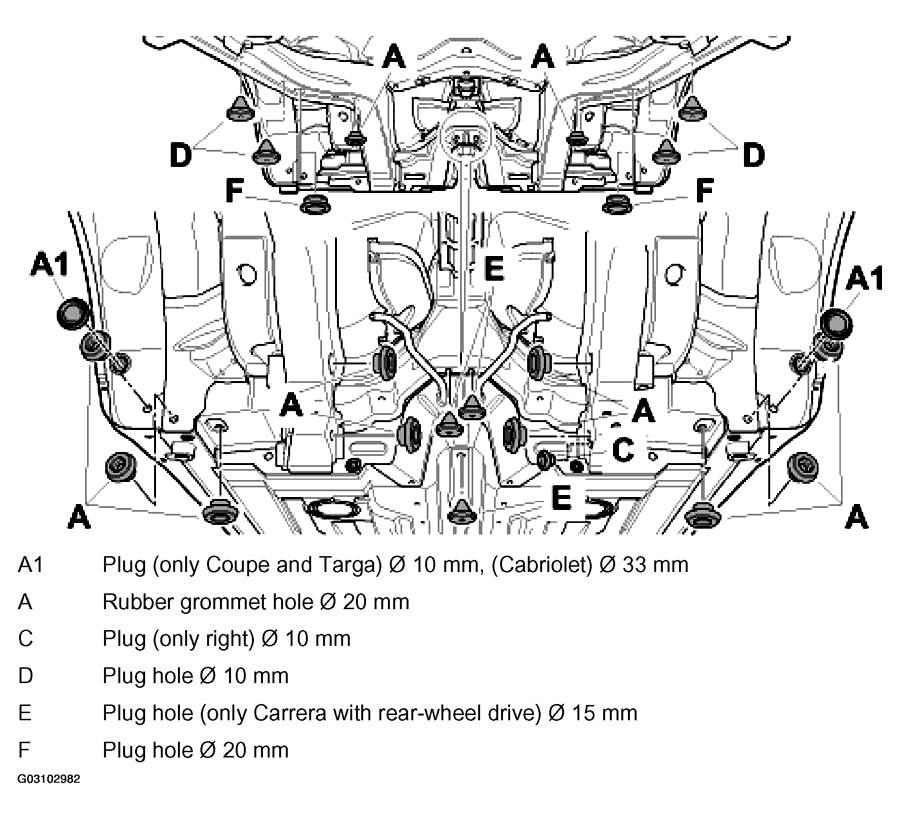

Fig 1: Identifying Plug Location Plan - Bottom Of Rear End

G03102982

Courtesy of PORSCHE OF NORTH AMERICA, INC.
