Bottom of lower side member and floor

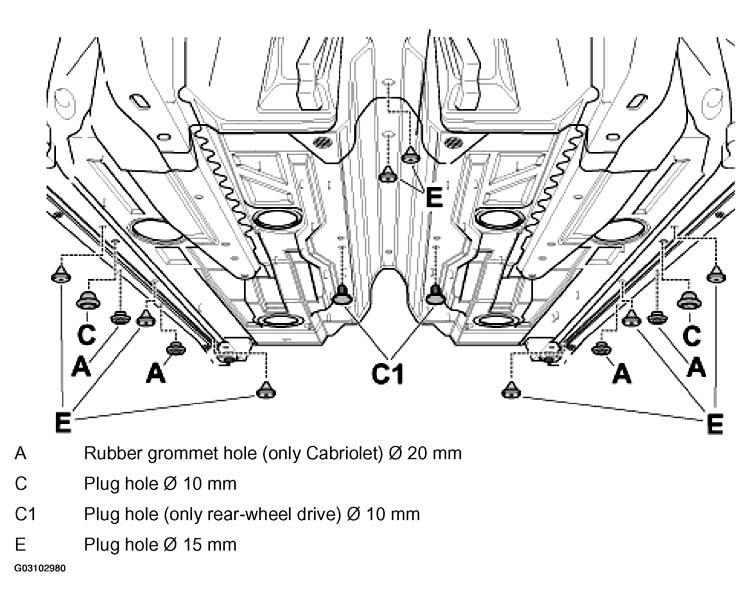

Fig 1: Identifying Plug Location Plan - Bottom Of Lower Side Member And Floor

G03102980

Courtesy of PORSCHE OF NORTH AMERICA, INC.
