Gap dimensions, body rear

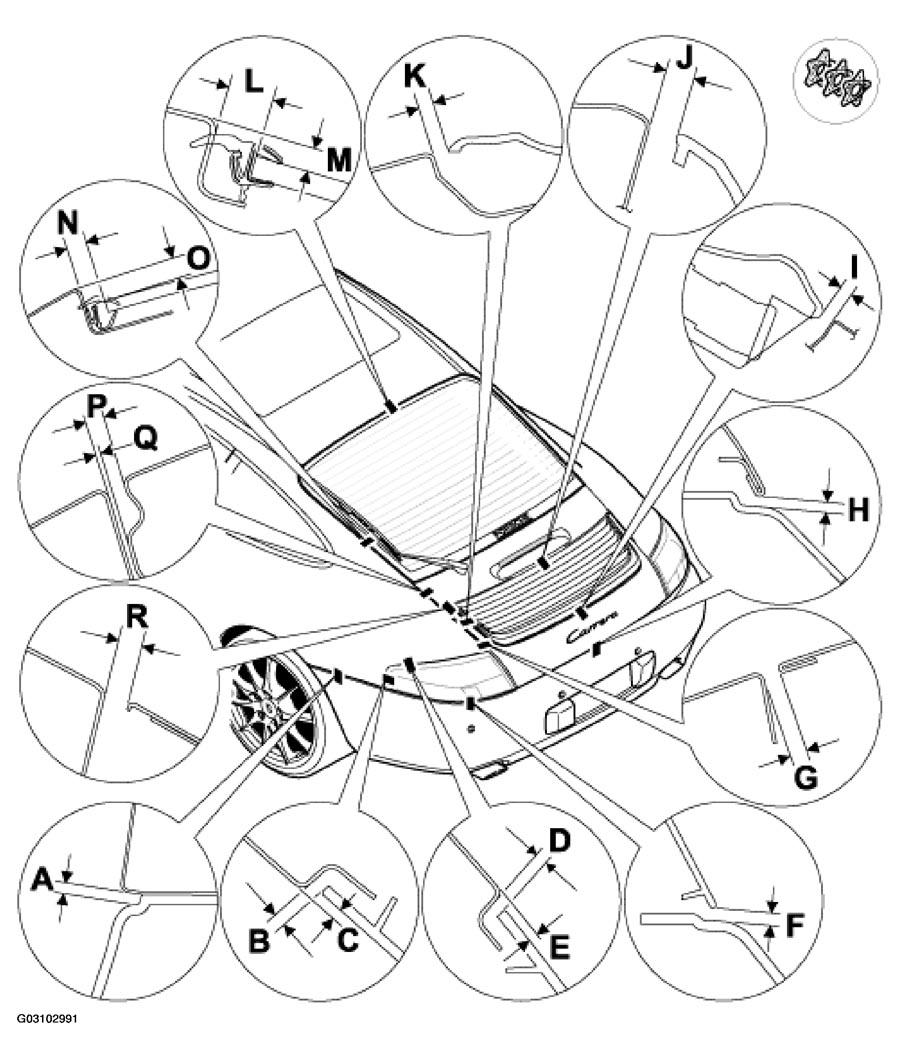

REAR BODY GAP DIMENSION DESCRIPTIONS (UP TO MODEL YEAR 2001)
| Designation | Dimension | Note | |
|---|---|---|---|
| Rear trim to outer side section | -A- | 3+/-0.5 mm | Gap is evident |
| Tail light to outer side section | -B- | 3 +/-0.5 mm | |
| -C- | 1.4 +/-1 mm | Tail light only lowered | |
| Tail light to middle side section | -D- | 3 +/-0.5 mm | |
| -E- | 2+/-1 mm | Tail light only lowered | |
| Rear trim to tail light | -F- | 5 +/-1 mm | |
| Rear lid to side part | -G- | 4.5 +/-1 mm | Determine left to right |
| Rear lid to rear spoiler | -H- | 5 +/-1 mm | Rear lid only lowered |
| Rear lid to spoiler top section | -I- | 4.5 +/-1 mm | Rear lid only lowered (max. 1 mm) |
| Rear centre panel to spoiler top section | -J- | 6+/-1 mm | Rear lid only lowered (max. 1 mm) |
| Rear lid to spoiler top section | -K- | 4.5 +/-1 mm | Rear lid only lowered (max. 1 mm) |
| Rear window to outer roof panel | -L- | 8.5-2 mm | |
| -M- | 4.5 mm | Only lowered | |
| Rear window to outer side section | -N- | 7-1 mm | |
| -O- | 7 mm | Determine left to right | |
| Outer side part to rear centre part | -P- | 4.3 +/-1 mm | |
| -Q- | 1.2 mm | Adhesive seam | |
| Rear centre part to rear lid | -R- | 5.2 +/-1 | Only lowered |
