Gap dimensions, body front

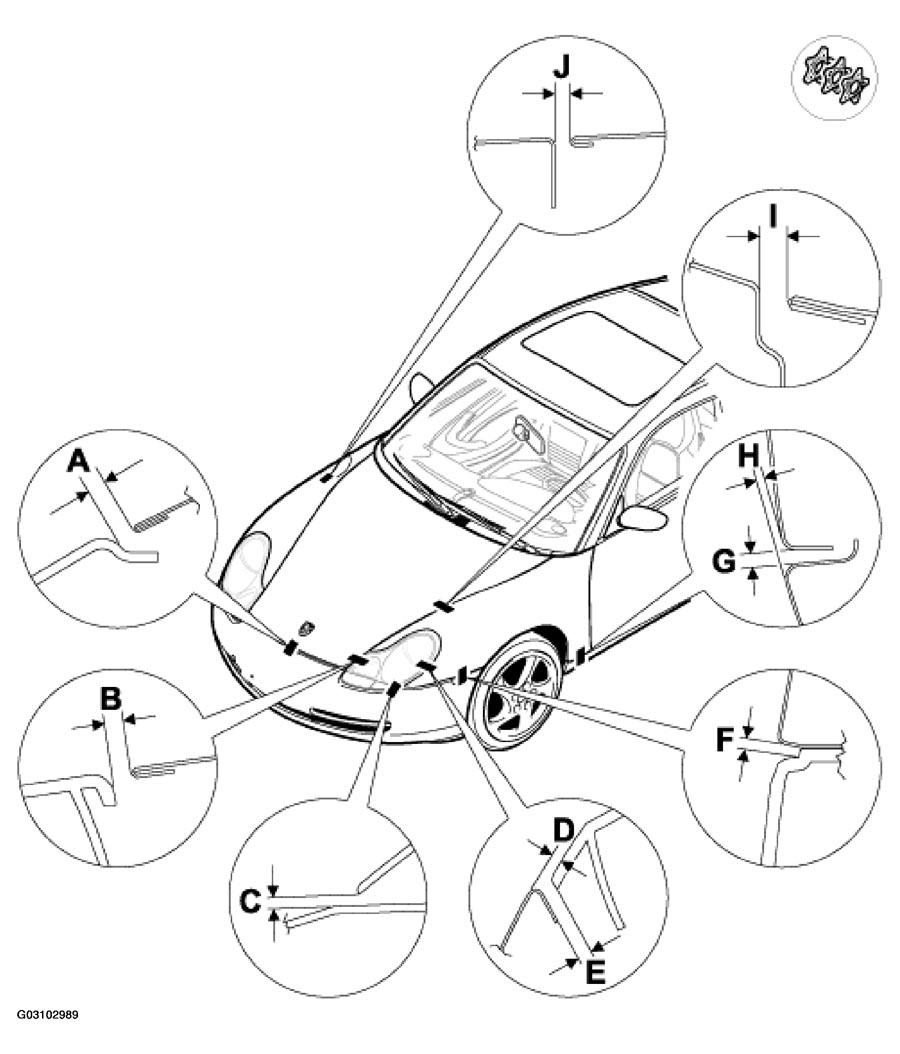

Fig 1: Identifying Body Gap Dimensions (Up To Model Year 2001) - Body Front

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT BODY GAP DIMENSIONS DESCRIPTIONS (UP TO MODEL YEAR 2001)

Designation	Dimension		Note
Front cover to front trim	-A-	6⁺¹ mm	Cover only lowered (max. 1 mm)
Front cover to modular headlight	-B-	4.5 mm	Determine left to right body Even seam joining line to point C
Modular headlight to front trim	-C-	4.5 mm	Even seam joining line to point B
Modular headlight to wing	-D-	2-1.5 mm
Modular headlight to wing	-E-	4.5_-0.5 mm
Wing to front trim	-F-	3 +/-0.5 mm	Gap is evident
Front wing to outer side section	-G-	4_-05 mm
Front wing to outer side section	-H-	1.2 mm
Wing to front cover	-I-	4 +/-0.5 mm	Determine gap left to right
Filler flap towing	-J-	3.5 +/-1 mm	All the way round
