Gap dimensions, body centre

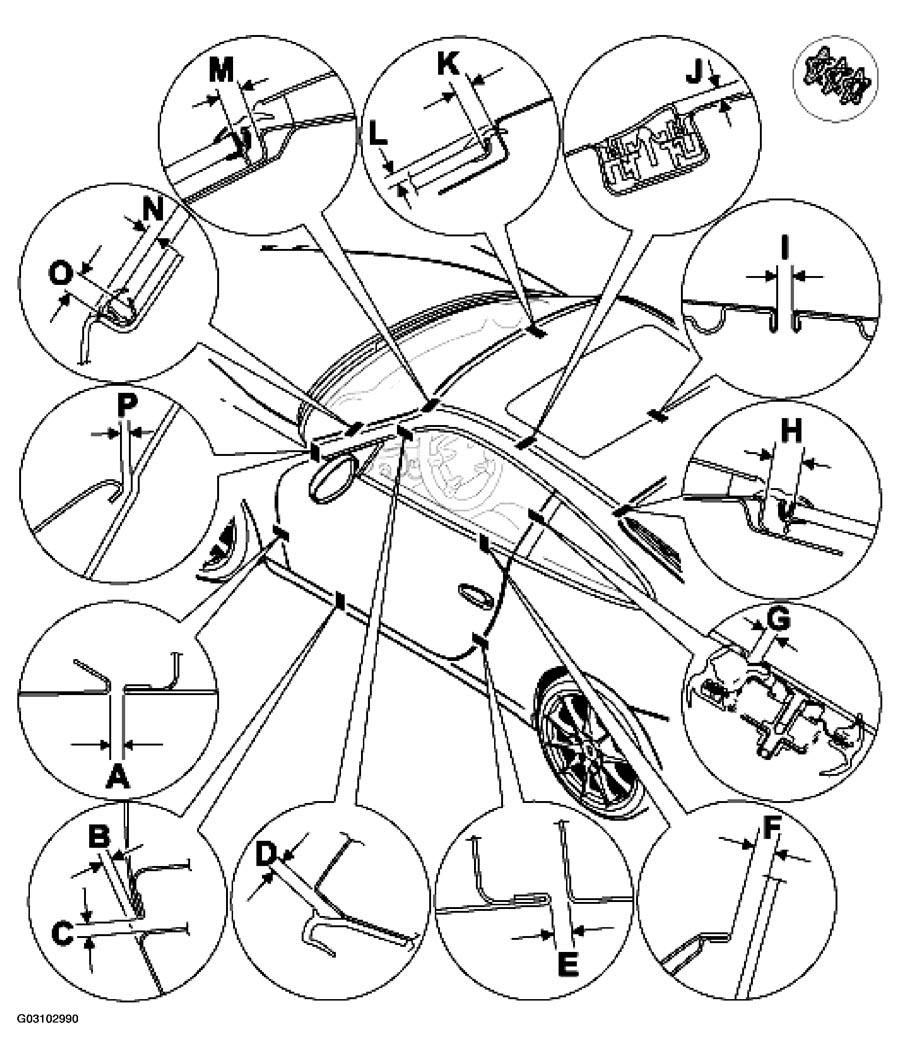

Fig 1: Identifying Body Gap Dimensions (Up To Model Year 2001) - Gap Dimensions, Body Centre

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CENTRE BODY GAP DIMENSIONS DESCRIPTIONS (UP TO MODEL YEAR 2001)

Designation	Dimension		Note
Door to front wing	-A-	5+1 mm	Door only lowered (max. 1 mm)
Door to outer side section	-B-	1.6 +/-1 mm	Door only lowered
	-C-	⁺¹ mm
	-E-	4 _-0.5 mm	Door only raised
Outer door panel to door window	-F-	7 +/-1.5 mm
Door window to rear side window	-G-	7 +/-1 mm	Door window lowered, max. 1 mm
Roof rail to sealing	-H-	3.5 +/-1.5 mm
Roof joint strip	-H-		Roof joint strip tapers off until it is flush
Sliding roof panel to outer roof panel	-I-	5.5 +/-0.5 mm	All the way around only lowered at front only raised at rear
Roof joint strip to outer roof panel	-J-	3.2 +/-1 mm
Windscreen to outer roof panel	-K-	8.5+/-0,_.2 mm
Windscreen to outer roof panel	-L-		Only lowered
Roof joint strip	-M-		Roof joint strip tapers off until it is flush
Cowl panel frame to windscreen	-O-	8.5._-1
Cowl panel frame to windscreen	-N-		Only lowered
Cowl panel frame to wing	-P-	3.5 to mm 7.0 +/-1	Continuous transition
