Gap dimensions, body front

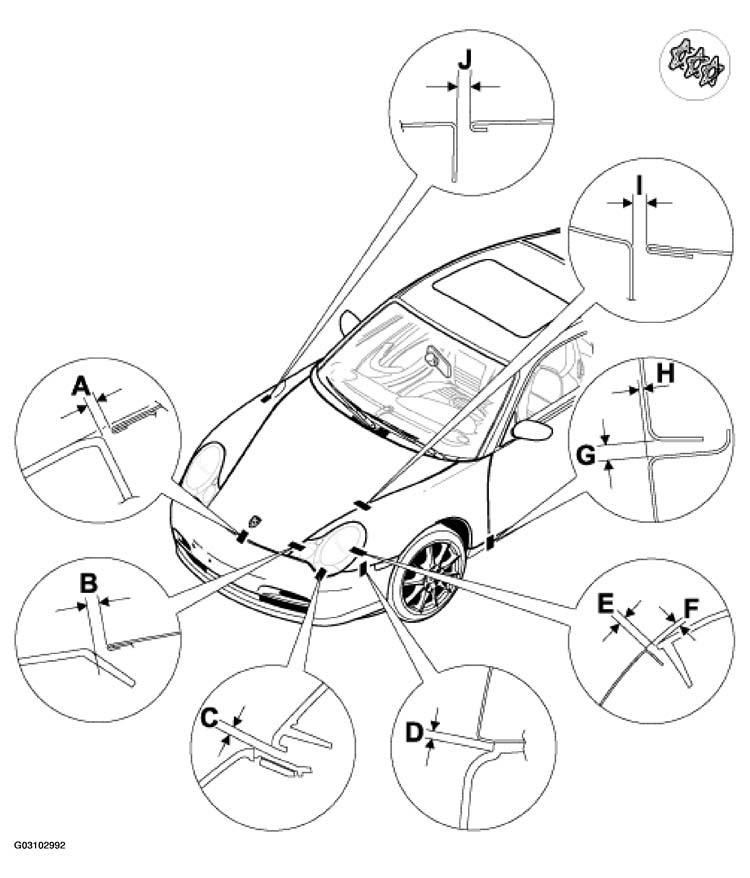

Fig 1: Identifying Body Gap Dimensions (As Of Model Year 2002) - Gap Dimensions, Body Front

Courtesy of PORSCHE OF NORTH AMERICA, INC.

BODY FRONT GAP DIMENSIONS DESCRIPTIONS (AS OF MODEL YEAR 2002)

Designation	Dimension		Note
Front cover to front trim	-A-	4⁺² mm	Cover only lowered (max. 1 mm)
Front cover to modular headlight	-B-	4.5 mm	Determine gap left to right
Modular headlight to front trim	-C-	4.0 mm
Wing to front trim	-D-	3 +/-0.5 mm	Gap is evident
Modular headlight to wing	-E-	3.5 +/-0.8 mm
Modular headlight to wing	-F-	2-1.5 mm
Front wing to outer side section	-G-	3.2_-0.5 to mm 3_-0.5	Even transition from front to rear
Front wing to outer side section	-H-	1.4 +/-1 mm
Wing to front cover	-I-	4 +/-1 mm	Determine gap left to right
Filler flap to wing	-M-	3.5 +/-1 mm	All the way round
