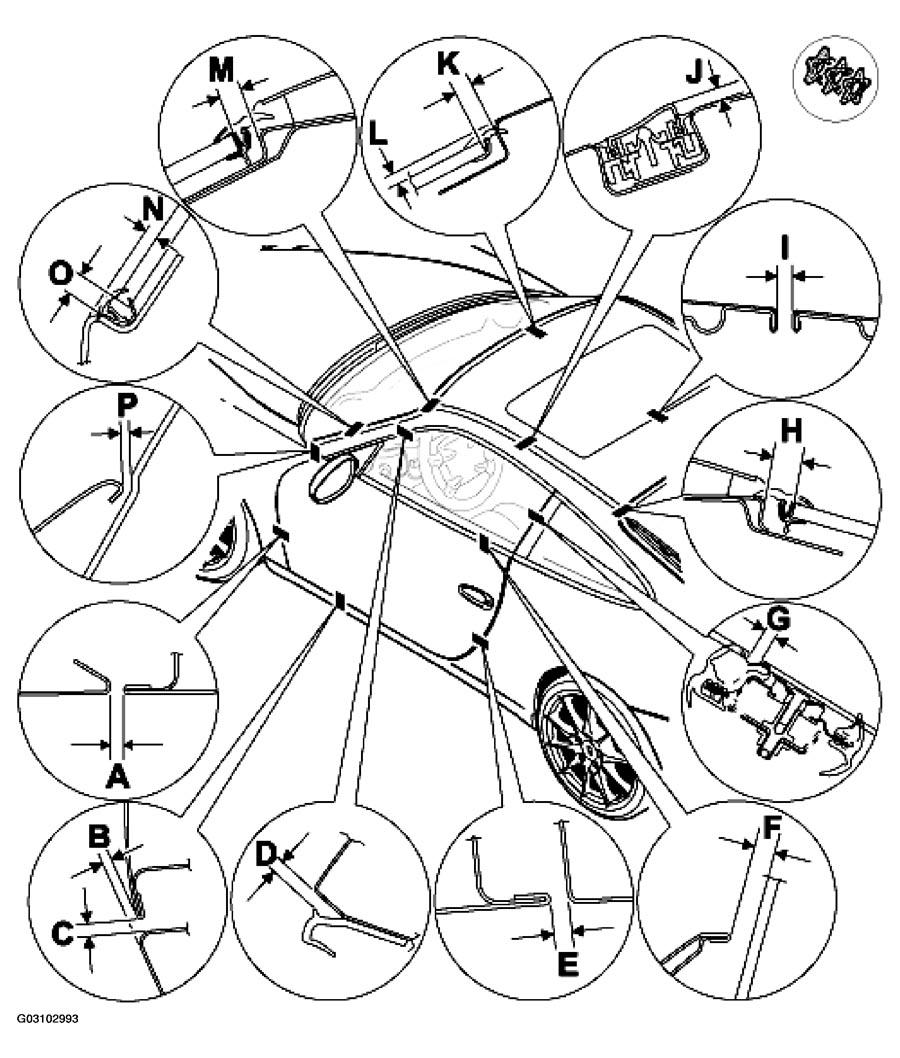

Gap dimensions, body centre
BODY CENTRE GAP DIMENSIONS DESCRIPTIONS (AS OF MODEL YEAR 2002)
| Designation | Dimension | Note | |
|---|---|---|---|
| Door to front wing | -A- | 4+2.5 mm | Door only lowered (max.1 mm) |
| Door to outer side section | -B- | 4.4-0.5 mm | |
| -C- | 1.6 +/-1 mm | Door only lowered | |
| -E- | 4-0.5 mm | Door only raised | |
| Outer door panel to door window | -F- | 7 +/-1.5 mm | |
| Door window to rear side window | -G- | 7 +/-1 mm | Door window lowered, max. 1 mm |
| Roof rail to sealing | -H- | 3.5 +/-1.5 mm | |
| Sliding roof panel to outer roof panel | -I- | 5.5 +/-0.5 mm | All the way around only lowered at front only raised at rear |
| Roof joint strip to outer roof panel | -J- | 3.2 +/-1 mm | |
| Windscreen to outer roof panel | -K- | 8.5+/-0,-2 mm | |
| -L- | Only lowered | ||
| Roof joint strip | -M- | Roof joint strip tapers off until it is flush | |
| Cowl panel frame to windscreen | -O- | 8.5-1 | |
| -N- | I | Only lowered | |
| Cowl panel frame to wing | -P- | 3.5 to mm 7.0 +/-1 | Continuous transition |
