Gap dimensions, body rear

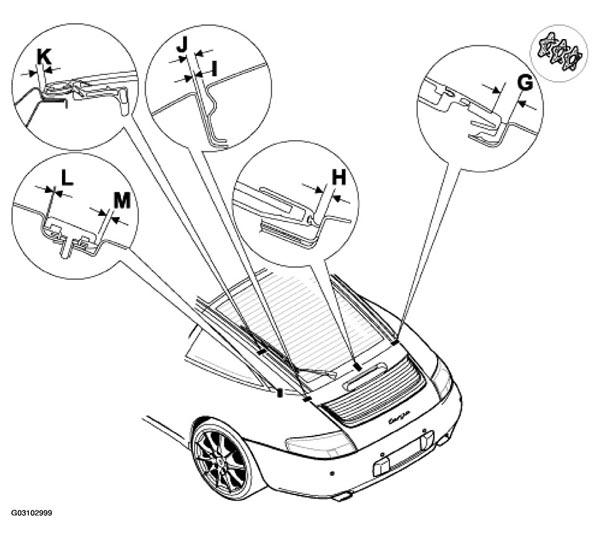

Fig 1: Identifying Rear Body Gap Dimensions - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR BODY GAP DIMENSIONS DESCRIPTIONS - TARGA

Designation	Dimension		Note
Cover at side of rear window to rear centre panel	-G-	11.4+/-1 mm	Determine gap left to right
Cover panel of rear window to rear centre panel	-H-	5⁺¹ mm
Side part to rear centre panel	-J-	4.3 +/-1 mm
Side part to rear centre panel	-I-	1.2	Adhesive seam
Side part to rear window lid	-K-	5+/-1 mm
C-pillar cover to roof rail	-L-	0.5⁺¹ mm
C-pillar cover to side part	-M-	2.5_-1 mm	Determine gap left to right
