Gap dimensions, body centre

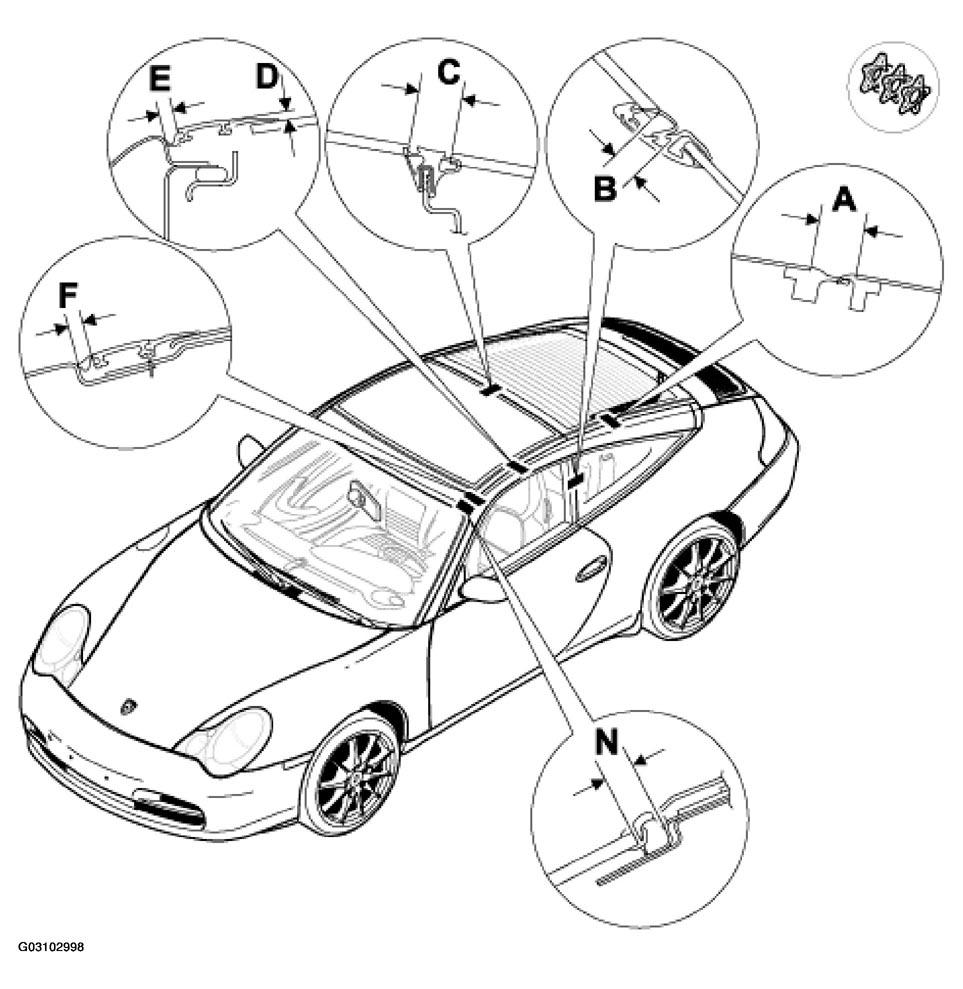

Fig 1: Identifying Centre Body Gap Dimensions - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CENTRE BODY GAP DIMENSIONS DESCRIPTIONS - TARGA

Designation	Dimension		Note
Front cover at side to rear cover at side	-A-	19 +/-4 mm
Door window to rear side window	-B-	9 +/-1 mm	(max. 1mm lowered)
Cover for sliding roof to rear window cover	-C-	15 +/-1 mm
Cover for sliding roof to outer roof panel	-D-	3.8 +/-1.5 mm
Roof joint strip to outer roof rail	-E-	5 +/-1.5 mm
Roof joint strip to outer roof rail	-F-	5.7^-0.7
Windscreen to cowl panel cover	-N-	3.5 +/-0.5 mm
