Diagram - Gap dimensions, rear Cabriolet

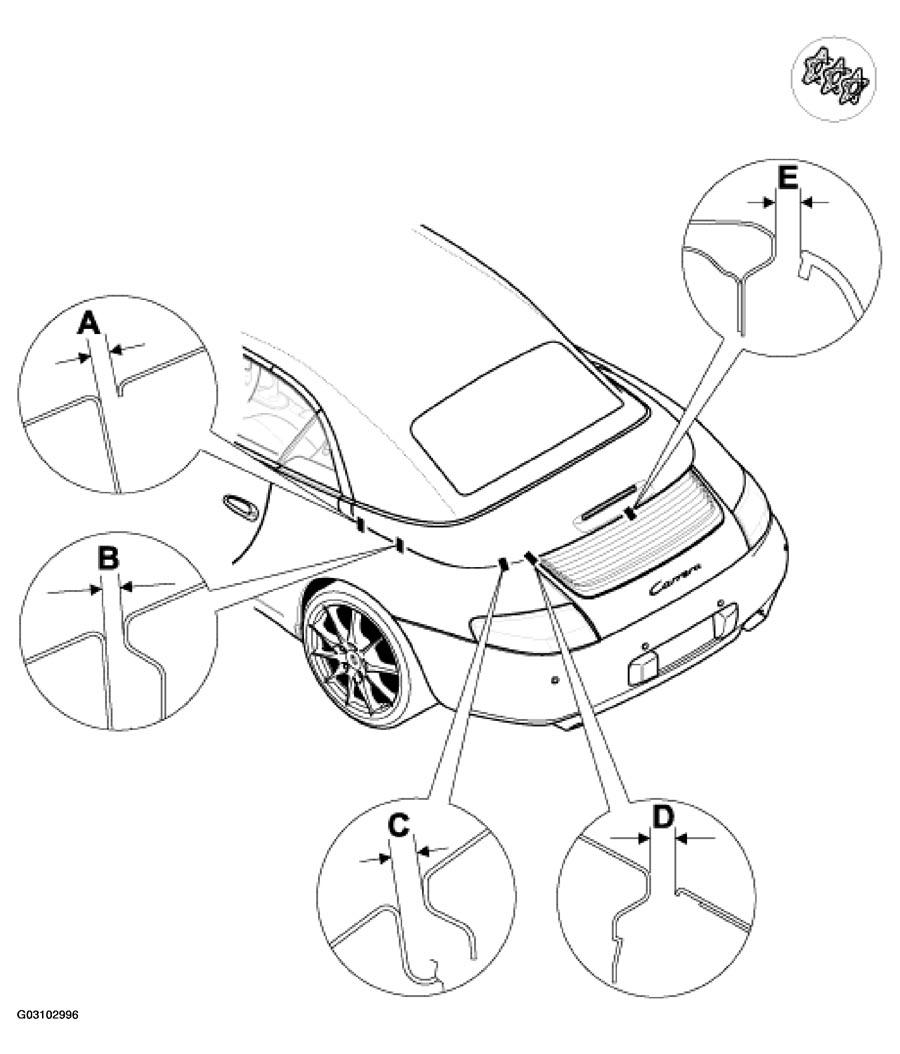

Fig 1: Identifying Rear Gap Dimensions - Cabriolet

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR GAP DIMENSIONS DESCRIPTIONS (CABRIOLET - 1 OF 2)

Designation	Dimension		Note
Slide part to convertible-top compartment lid	-A-	3.3 _-0.5 mm	Continuous seam joining line
	-B-	to
	-C-	5 _-0.5 mm

REAR GAP DIMENSIONS DESCRIPTIONS (CABRIOLET - 2 OF 2)

Designation	Dimension		Note
Convertible-top compartment lid to rear lid	-D-	5_-0.5 mm
Convertible-top compartment lid to spoiler top section	-E-	6+1 mm
