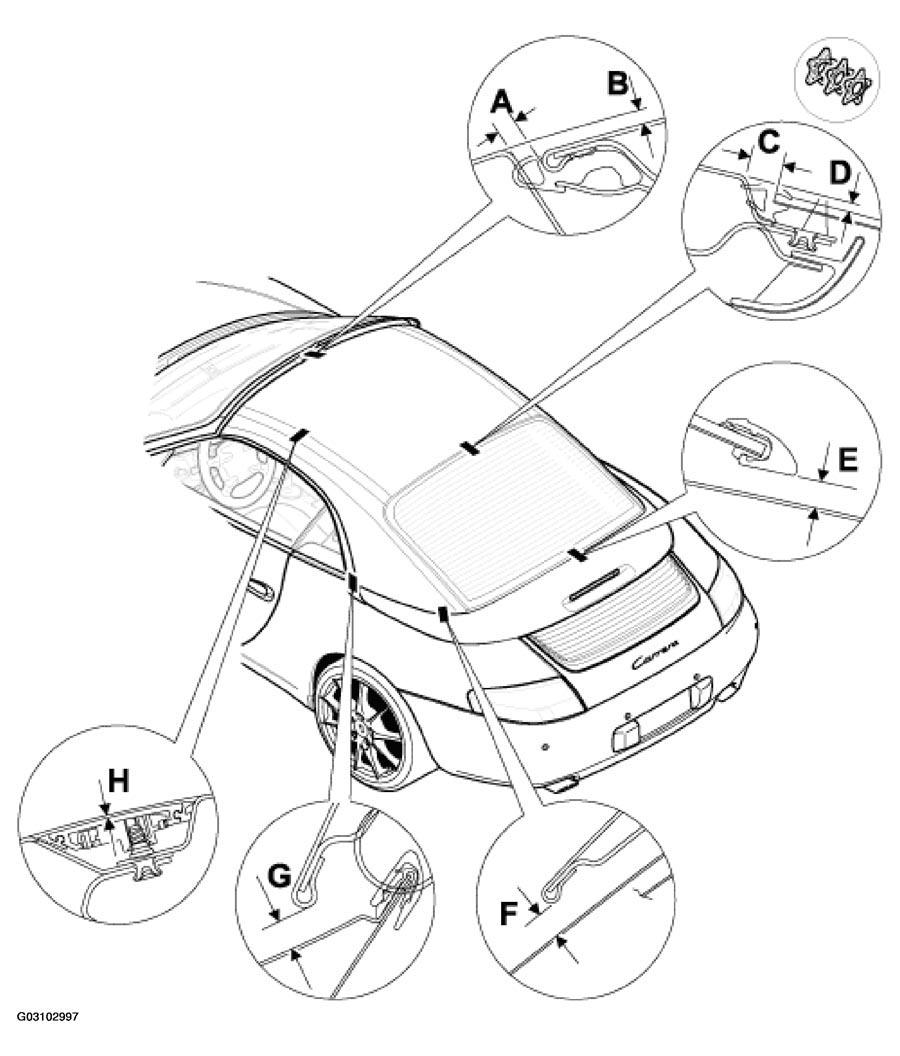

Diagram - Gap dimensions, hardtop
HARDTOP GAP DIMENSIONS DESCRIPTIONS (1 OF 2)
| Designation | Dimension | Note | |
|---|---|---|---|
| Windscreen frame to convertible top | -A- | 5.5 +/- 0.5 mm | |
| -B- | 4-2 mm | Convertible top only lowered | |
HARDTOP GAP DIMENSIONS DESCRIPTIONS (2 OF 2)
| Designation | Dimension | Note | |
|---|---|---|---|
| Rear window to rear roof frame (Hardtop) | -C- | 10.4 mm | |
| -D- | 3 +/-1.5 mm | ||
| Hardtop to convertible-top compartment lid | -E- | 6.4 -2 mm | |
| -F- | 9.3 +/-5 mm | ||
| -G- | 7.8 +/-4 mm | Tail light only lowered | |
| Roof joint strip to hardtop | -H- | 0.8 +/-1 mm | Only lowered |
