Diagram - Centre gap dimensions, Cabriolet

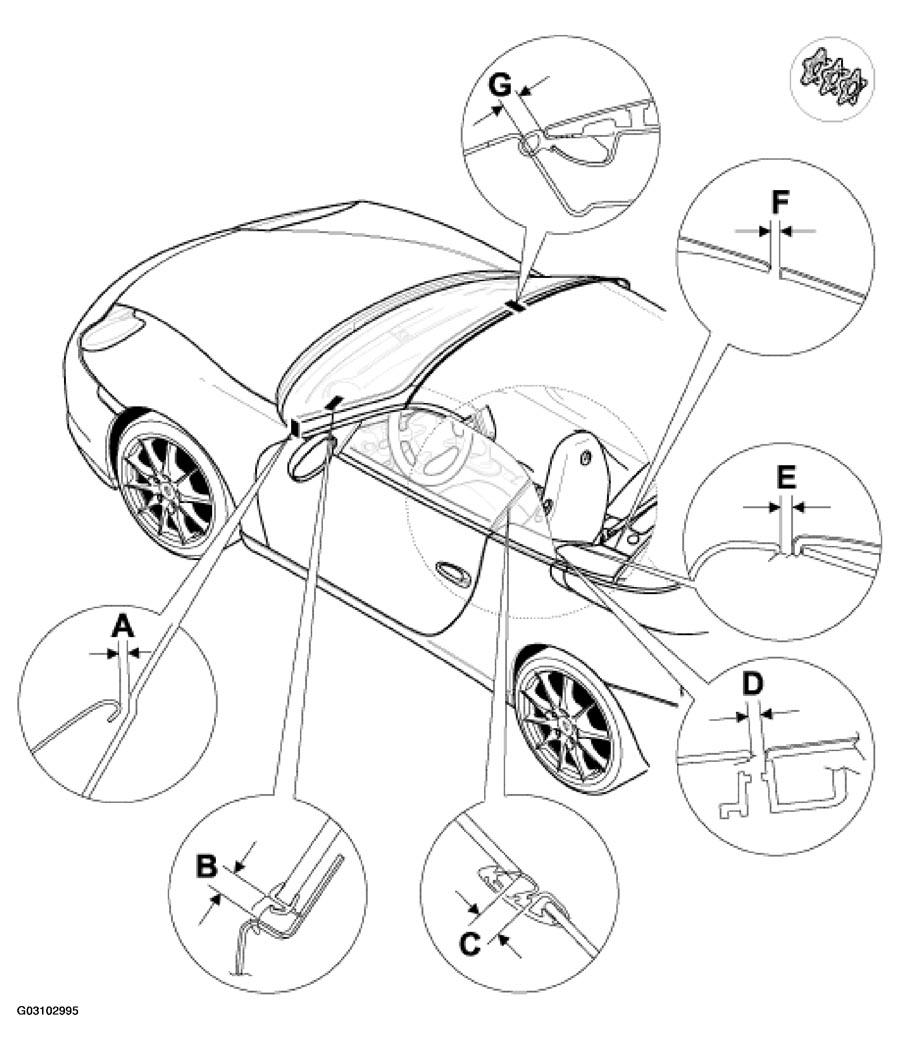

CENTRE GAP DIMENSIONS DESCRIPTIONS (CABRIOLET)
| Designation | Dimension | Note | |
|---|---|---|---|
| Cowl panel frame to wing | -A- | 3.5 to 7.0 +/-1 mm | Continuous transition |
| Windscreen to cowl panel frame | -B- | 8.5-1 mm | |
| Door window to rear window | -C- | 9 +/-1 mm | |
| Rear side section flap to side trim panel | -D- | +2.5 mm | |
| -E- | 4+2 mm | ||
| Rear side section flap to frame trim panel for roll-over protection system | -F- | +2 mm | |
| Cowl panel frame to roof frame 1 | -G- | 7 +/-1 mm | Roof frame only lowered |
