Structural body parts (model care) for model year 2002

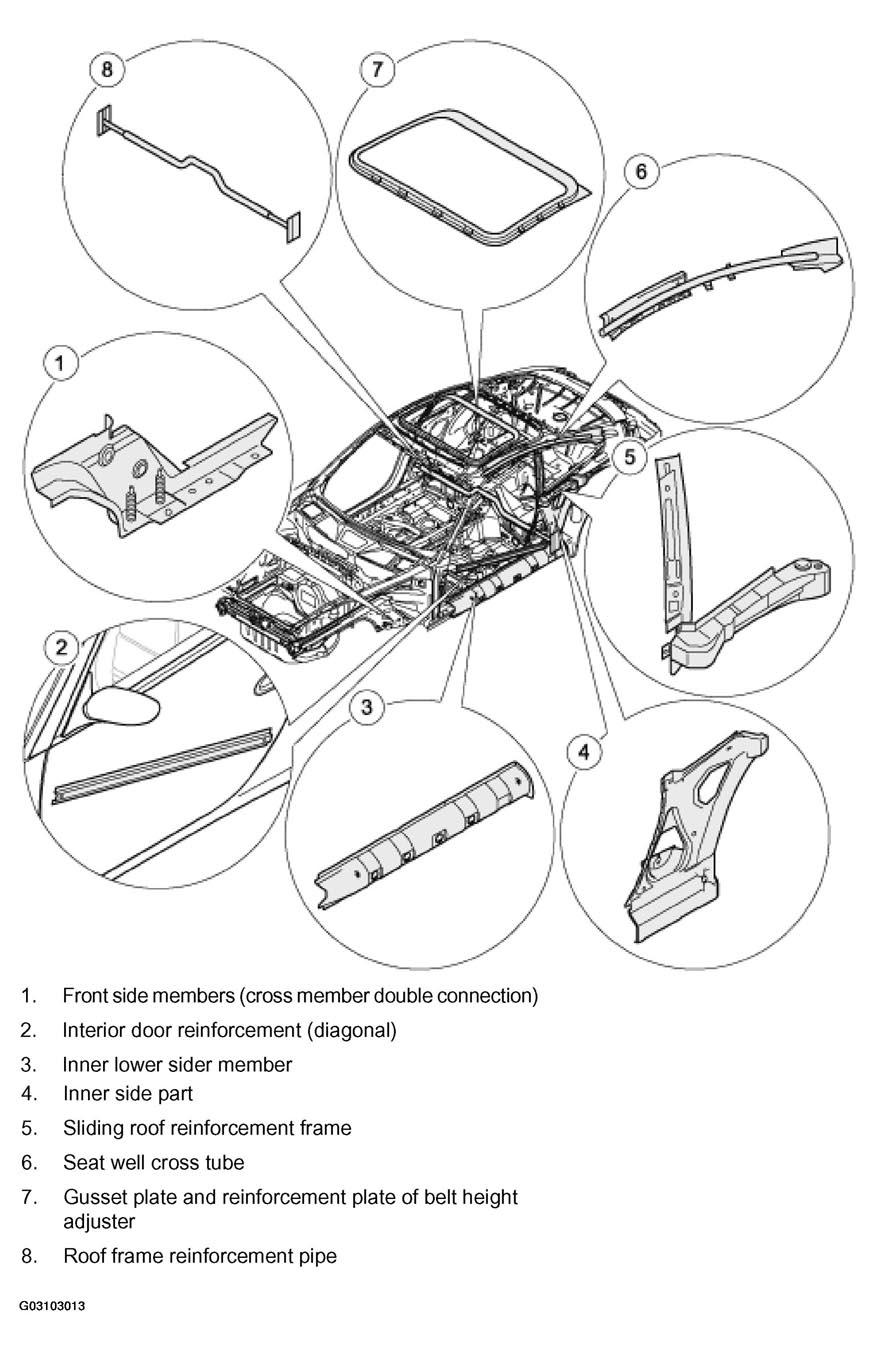

Fig 1: Identifying Structural Body Parts (Model Care) For Model Year 2002 And Newer

G03103013

Courtesy of PORSCHE OF NORTH AMERICA, INC.
