Diagram - Body, model year 2002: Notes

In the model year 2001 (model care), the following structural body parts have been used in the body for passive safety. As of model year 2002, all vehicles will be constructed with the structural parts shown in the following diagram.

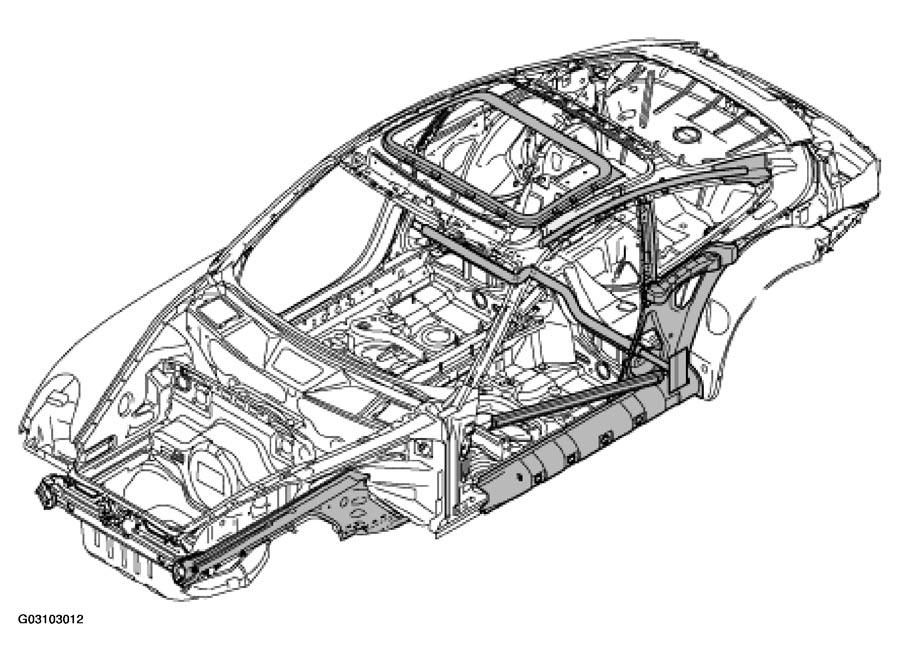

Fig 1: Diagram - Body, Model Year 2002 And Newer

Courtesy of PORSCHE OF NORTH AMERICA, INC.
