Glasses, Window Control Diagnosis - 911 CARRERA (996)
>>
Component arrangement
Component arrangement

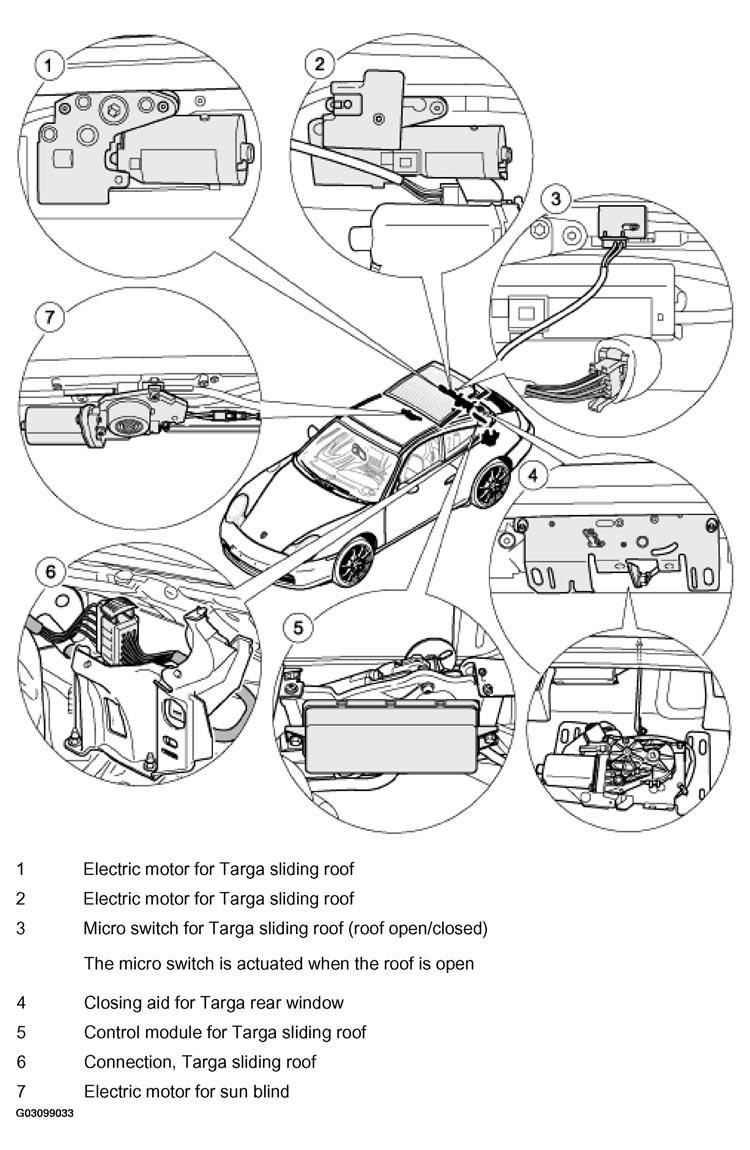

Fig 1: Identifying Component Arrangement Of Glass, Window Control
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
