Removing roof lining
Courtesy of PORSCHE OF NORTH AMERICA, INC.
ROOF LINING REMOVING PROCEDURE
| No. |
Procedure |
Instructions |
| 1 |
Removing interior light cover |

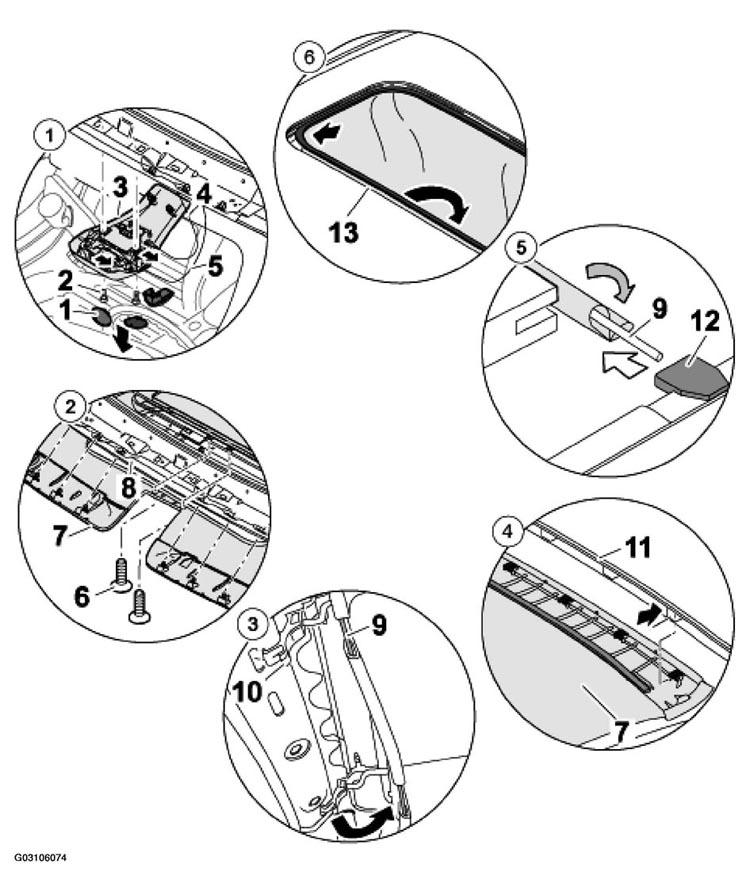

- Using a small screwdriver, carefully unclip both cover lenses -1-
at the openings provided. See Fig 1
.
- Undo fastening screws -2-
. Unclip cover -3-
at the rear left and right, push forward towards the windscreen and remove. See Fig 1
.
- Disconnect the electrical plug connection of the sliding roof rocker switch -4-
and the interior light -5-
. See Fig 1
.
|
| |
Removing sun visors and brackets |
Refer to REMOVING AND INSTALLING SUN VISORS
. |
| 2 |
Unclipping front plastic lining |
- Undo fastening screws -6-
in the plastic lining -7-
at the front and unclip the lining out of the cowl panel frame -8-
in a downward direction at the left and right. See Fig 1
.
|
| 3 |
Detaching roof liner at sides |
- Unclip the metal strut of the roof liner -9-
from the plastic clips -10-
at the right and left. See Fig 1
.
|
| 4 |
Disengaging rear plastic lining |
- Pull the rear plastic lining -7-
towards the rear out of the roof frame -11-
evenly on the left and right and disengage. See Fig 1
.
|
| 5 |
Disengaging metal strut |
- Pull the metal brace -9-
contained in the fabric pocket down in the centre so that it bends. Pull the metal strut -12-
out of the bracket on the left and right. See Fig 1
.
|
| 6 |
Disengaging frame |
- Pull the frame of the sliding roof cut-out -13-
backwards and downwards in the centre at the front so that the frame overlap at the corners is reduced and it is possible to pull it out in a downward direction. Then pull out the roof frame diagonally via the sliding roof cut-out inwards into the passenger compartment. See Fig 1
.
|
