Disassembling and assembling the dashboard - as of MY 1997: Notes

NOTE:

• The following components; screen, central vent and holder have changed on the dashboard for model year 2002 (model care). The dashboard has a glove compartment and a cupholder. The procedures described in the following are to be carried out for repair work on the components (model year 2002).
• Refer to REMOVING AND INSTALLING GLOVE COMPARTMENT, - AS OF MY 2002 .
• Refer to REMOVING AND INSTALLING CUP HOLDER, - AS OF MY 2002 .
• See ADDITIONAL ASSEMBLY INSTRUCTIONS FOR THE COVER AND CENTRAL VENT FOR THE DASHBOARD-AS OF MODEL YEAR 2002  .

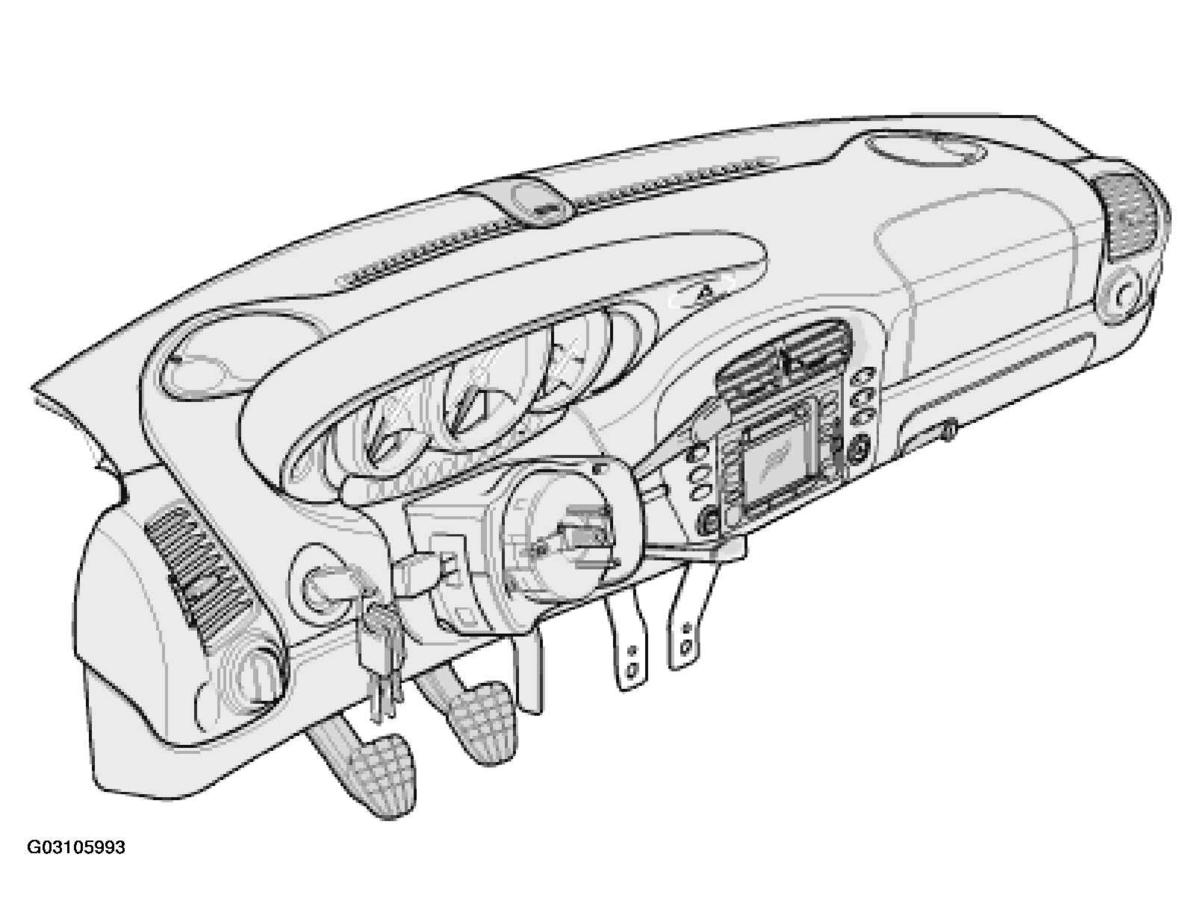

Fig 1: Identifying Dashboard (As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
