Additional assembly instructions for the cover and central vent for the dashboard - as of model year 2002

Removing cover and central vent for the dashboard

Removing cover and central vent
1. Insert a plastic spatula into the side of the cover -1- and press out. See Fig 1 .
2. Insert the second plate of the central vent into the metal clip -3- using a small screwdriver -2- . See Fig 1 .
  - Press and hold screwdriver upwards in the direction of arrow and simultaneously pull out the central vent -2- with the cover. See Fig 1 .

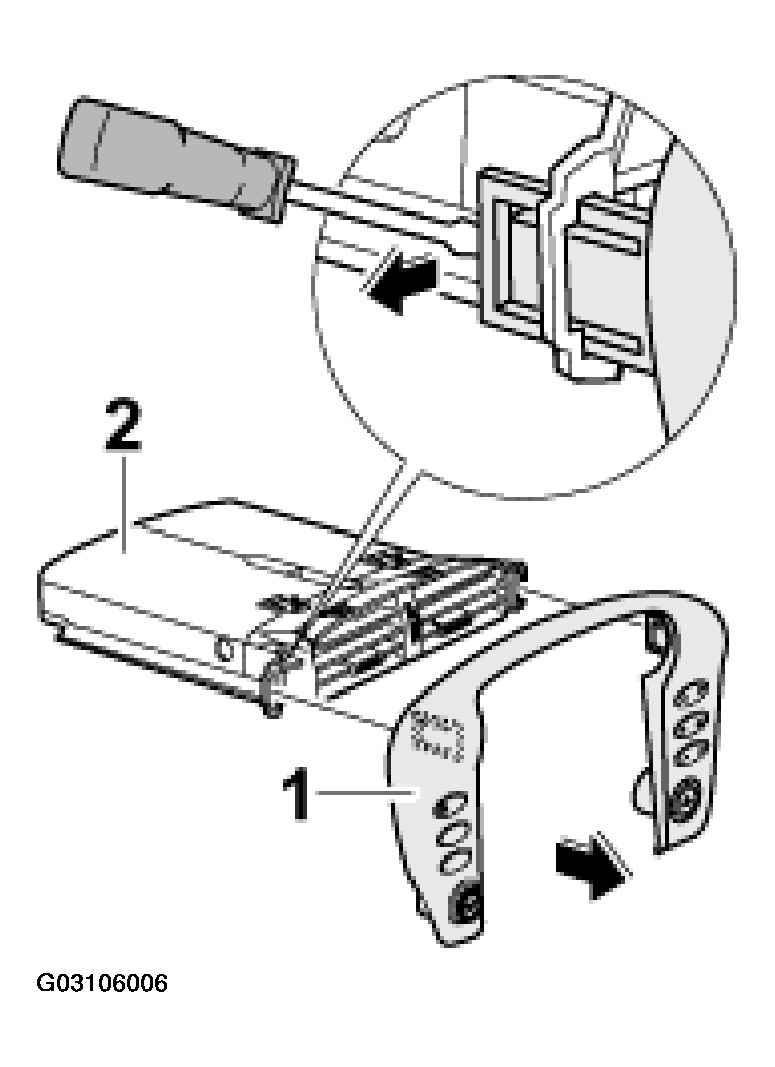

Fig 1: Removing Cover And Central Vent (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Removing frame
1. Unscrew fastening screws -3- from the mount -4-

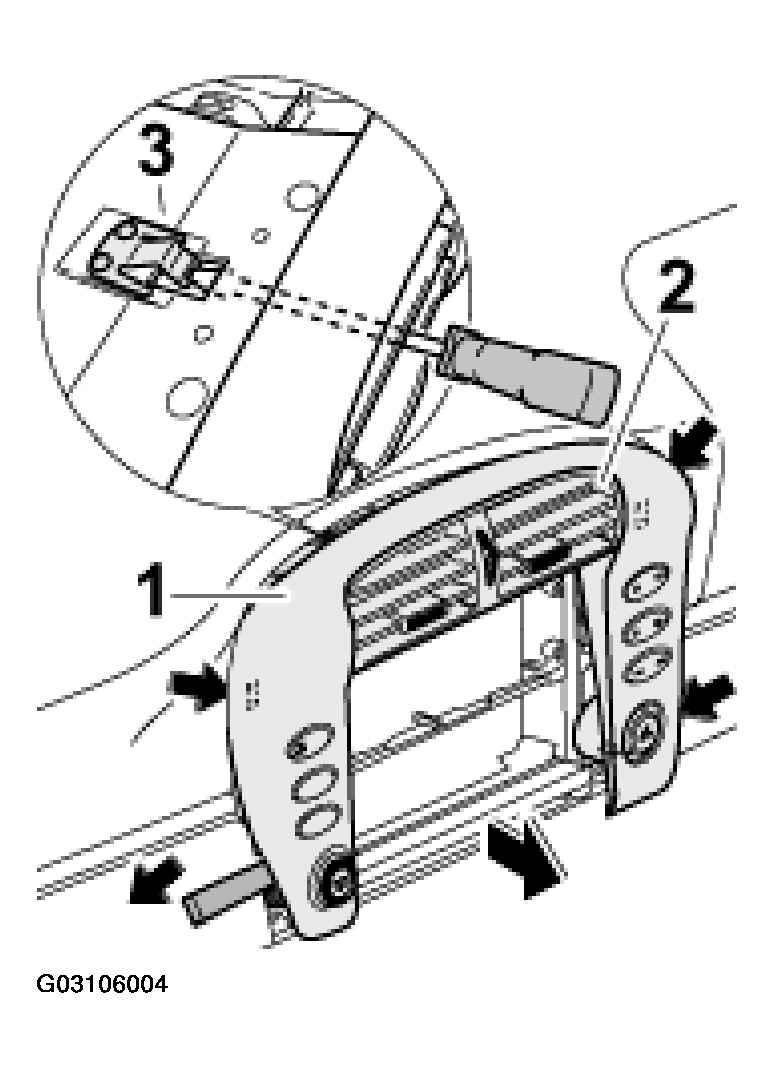

Fig 2: Removing Frame (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Unclipping the cover from the central vent
Push in locking tab on the cover -1- using a screwdriver. Pull out central vent -2- .

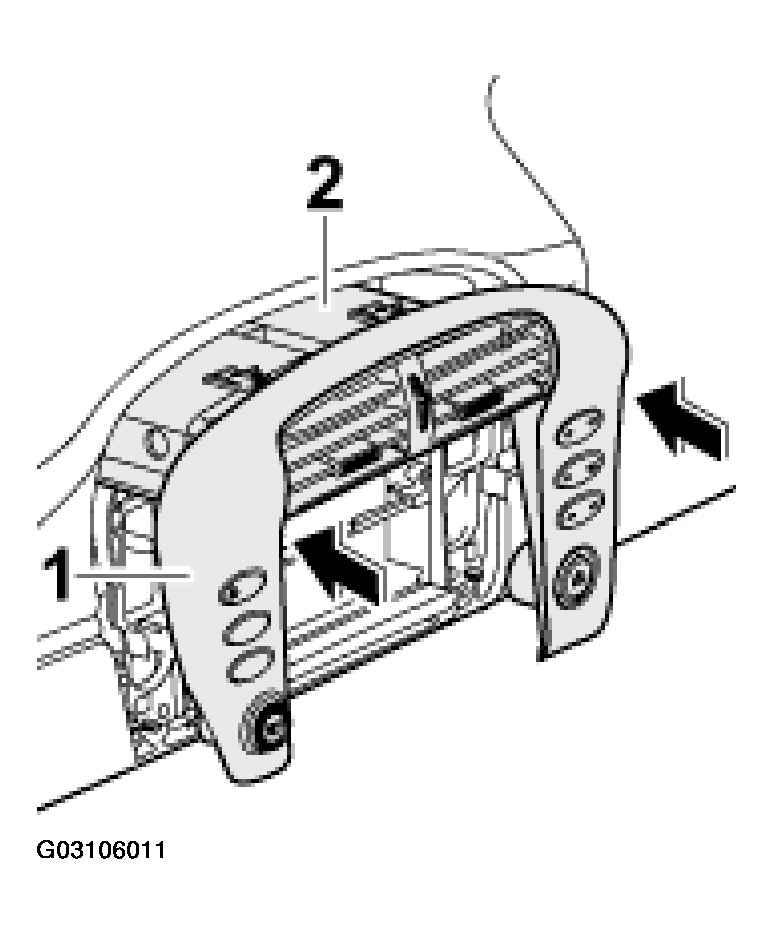

Fig 3: Unclipping Cover From Central Vent (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Removing holder

Removing holder
Unscrew fastening screws -1- from the holder -A or B- .

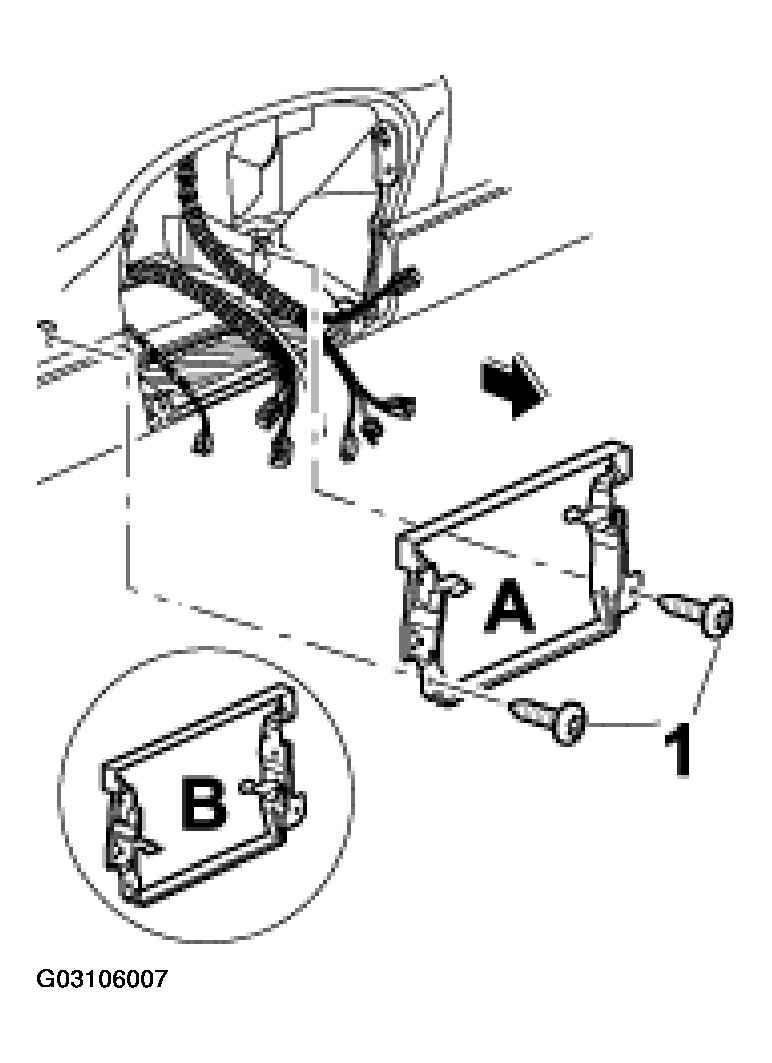

Fig 4: Removing Holder (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Installing holder

Installing holder
Position the holder -1- on the dashboard and secure with the fastening screws -1- .

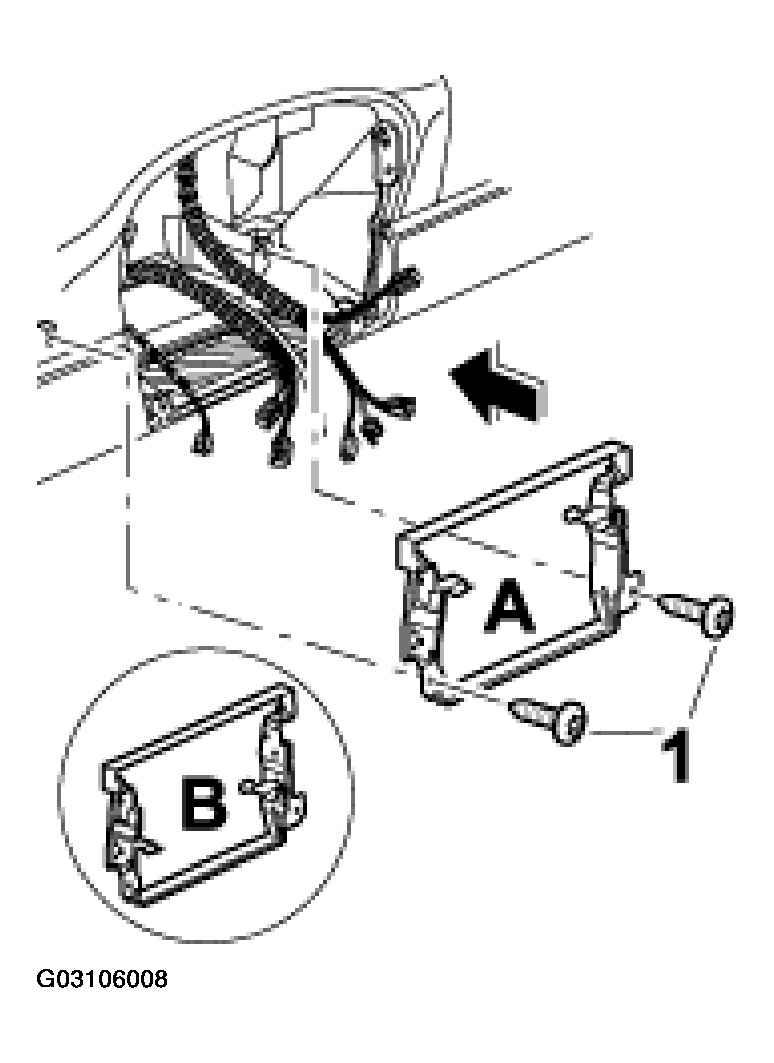

Fig 5: Installing Holder (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Installing cover and central vent for the dashboard

CAUTION: Danger of material damage to finished covers!

The control switches must be correctly mounted before the cover is fitted.
Particular care is required when clipping in finished covers.
The finished covers of the Exclusive / or Equipment range (carbon-fibre composite, light/dark wood) could be damaged as a result.

Clipping in the central vent
Connect the cover -1- with the central vent -2- . Ensure that the locking tab is engaged on the left and right side.

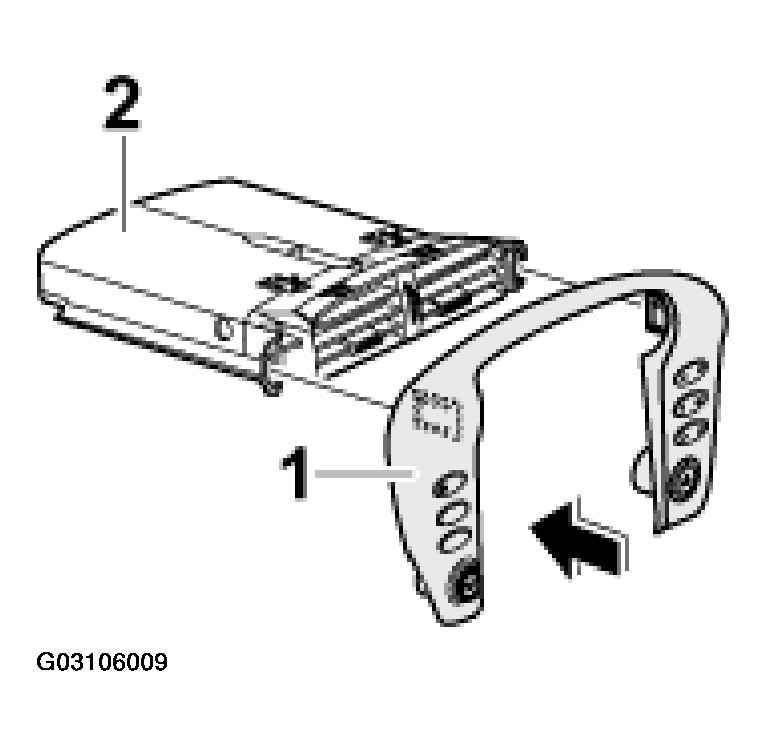

Fig 6: Clipping In Central Vent (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing frame
1. Position the frame -5- on the dashboard and secure with the fastening screws -3- .

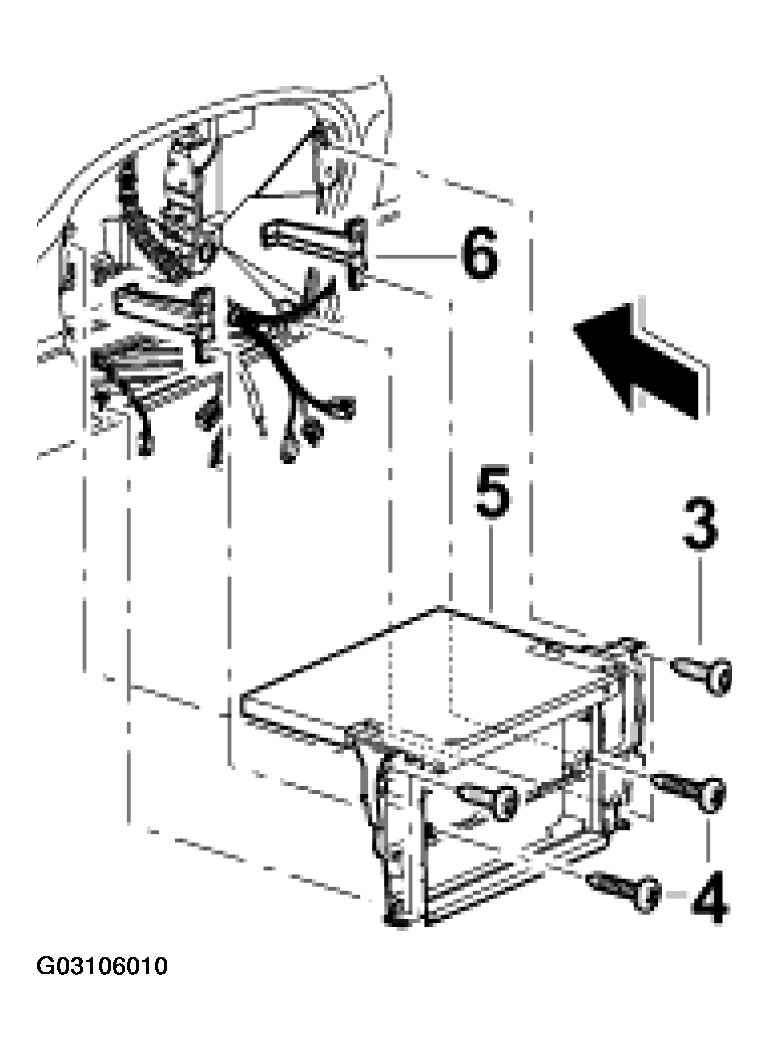

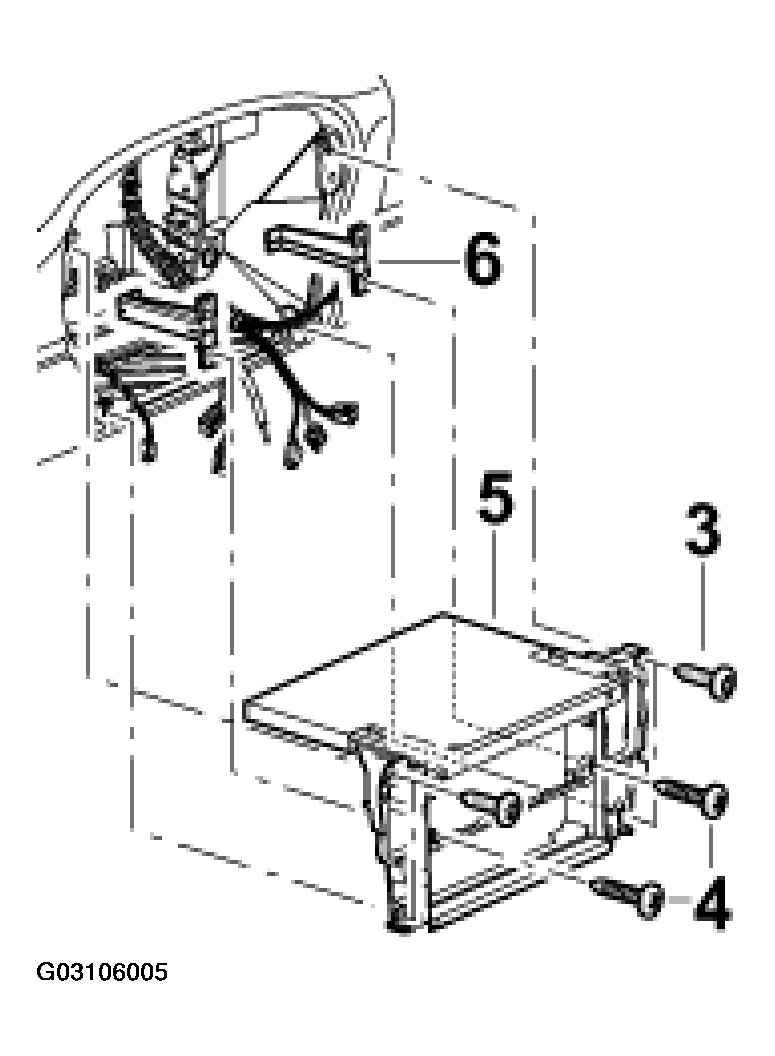

Fig 7: Installing Frame & Screws (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing cover and central vent
1. Push the cover -1- with the central vent -2- into the dashboard, ensuring that the clips are engaged at the top and the locking tabs at the side.
Fig 8: Installing Cover And Central Vent (As Of MY 2002)
