Use of the circlip pliers

1. Unscrew the knurled screw -11-  with the circlip pliers in the -direction of the arrow-  . Insert metal clip -7-  into the U-profile of the lower jaw -A-  in -direction of arrow-  . Insert the upper claw -X-  into the metal clip -7-  in -direction of arrow-  at the same time. See Fig 1 .
2. Insert into the upper adjusting claw -Y-  in the metal clip -7-  in -direction of arrow-  . Tighten knurled screw -11-  . See Fig 1 .

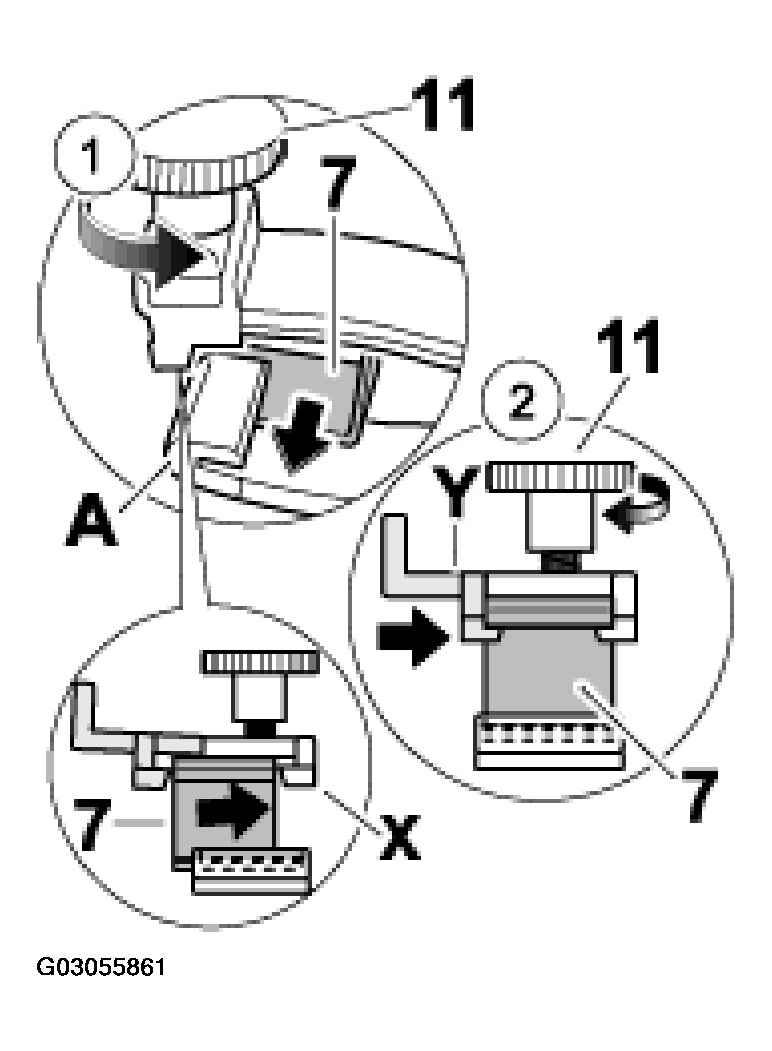

Fig 1: Inserting Metal Clips Into Circlip Pliers (Cabriolet, As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Pushing the metal clips onto the aluminium frame. See INSTALLING REAR GLASS WINDOW OF CABRIOLET  .

1. Unscrew knurled screw -11-  . Pull upper adjusting claw -Y-  to the right in -direction of arrow-  . See Fig 2 .
2. Push circlip pliers to the front -direction of arrow-  and remove from the U-profile of the lower jaw -A-  . See Fig 2 .
3. Pull the circlip pliers to the left in -direction of arrow-  and remove from the metal clip -7-  with the upper claw -X-  . See Fig 2 .

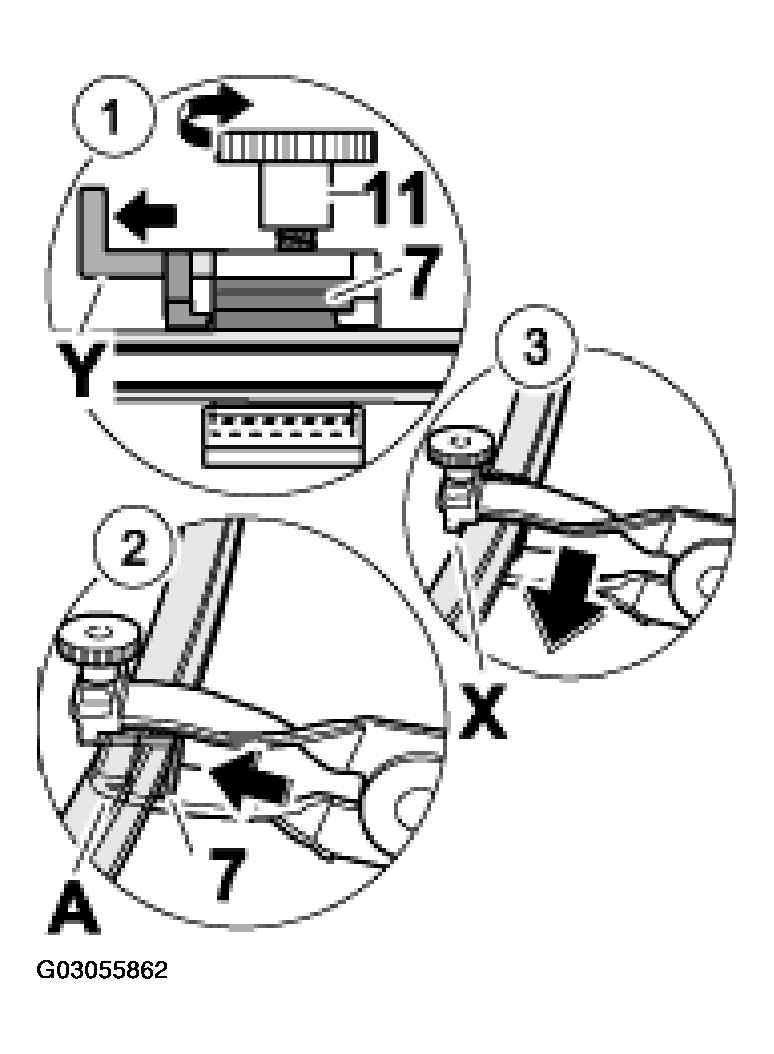

Fig 2: Removing Circlip Pliers From Metal Clip (Cabriolet, As Of MY 2002)
