Removing covering for backrest centre strip

WARNING: This page is about a different variant/trim than selected.

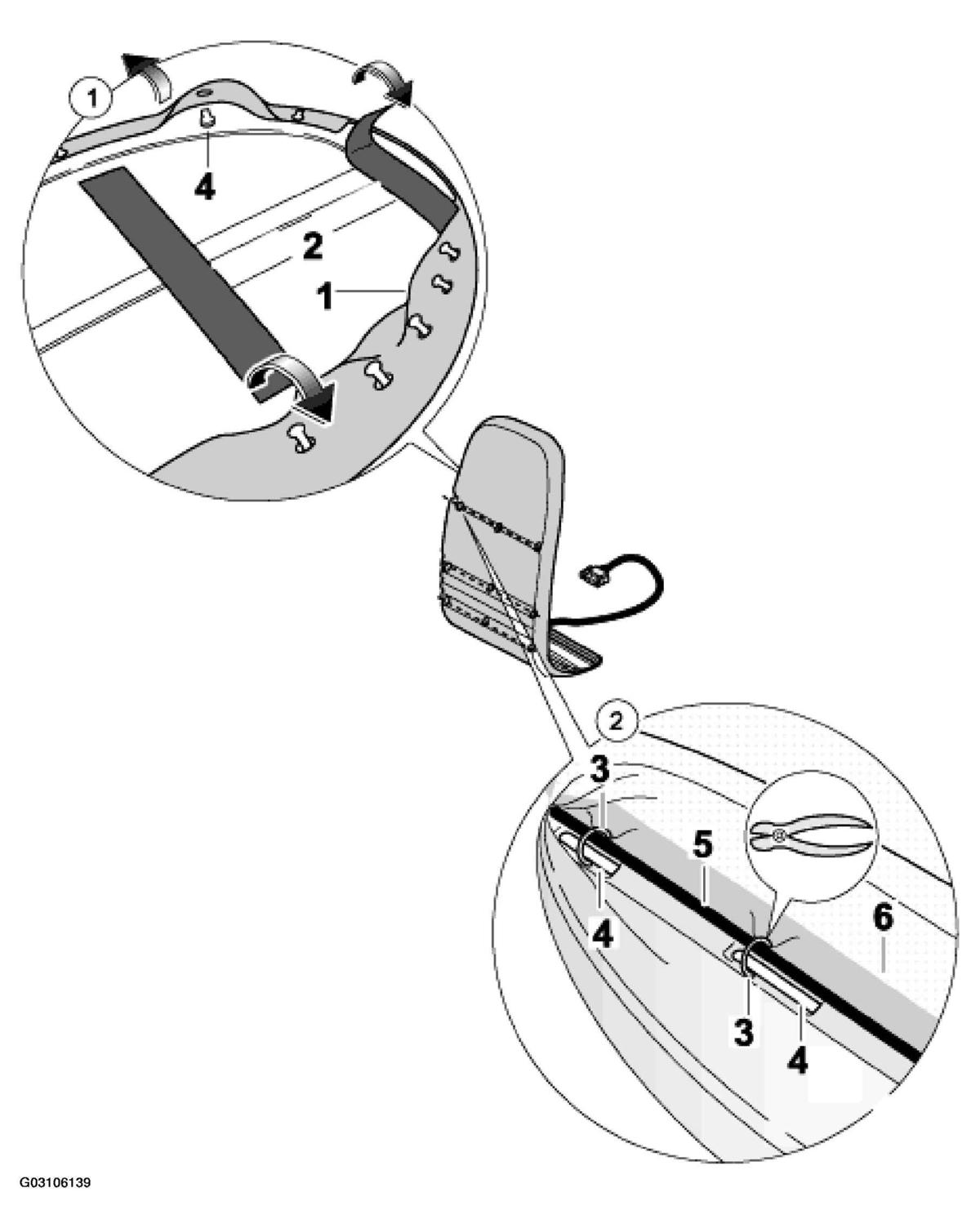

Fig 1: Removing Covering For Backrest Centre Strip - As Of MY 1997

Courtesy of PORSCHE OF NORTH AMERICA, INC.

BACKREST CENTRE STRIP COVERING REMOVING PROCEDURE - AS OF MY 1997

No.	Procedure	Instructions
	Removing backrest centre strip	See REMOVING THE BACKREST CENTRE STRIP .
1	Pulling off fabric tape strips	Pull of the felt strips -2-4-1-4- . See Fig 1 .
2	Cutting through the cushion clips	Cut through the cushion clips -3-5-4-6- . See Fig 1 .
