Removing the backrest centre strip

WARNING: This page is about a different variant/trim than selected.

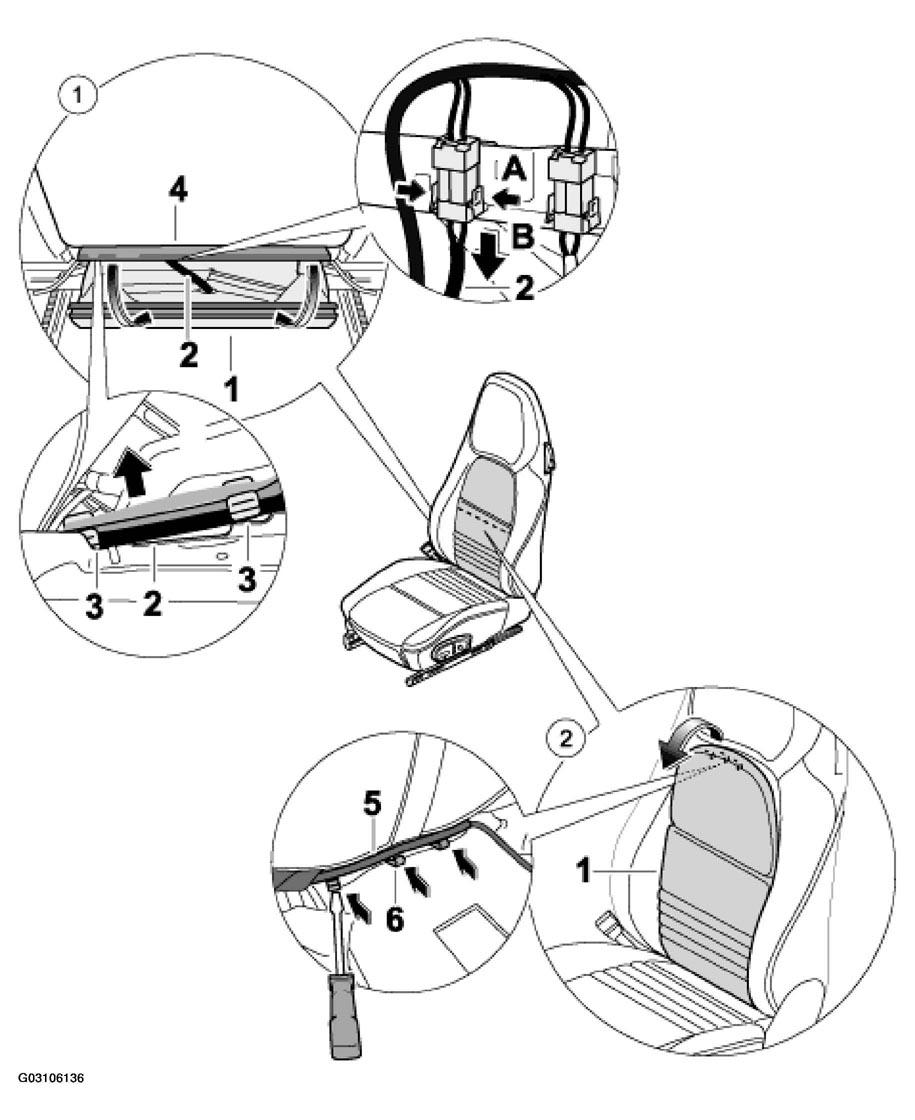

Fig 1: Removing Backrest Centre Strip - As Of MY 1996
G03106136Courtesy of PORSCHE OF NORTH AMERICA, INC.
BACKREST CENTRE STRIP REMOVING PROCEDURE - AS OF MY 1996

No.  Procedure  Instructions
1 Detaching covering strip from the backrest shell and disconnect electrical plug connection. Press locking tabs of the backrest seat heating -A-B-2-3-1-4-  . See Fig 1 .
2 Unclipping the backrest centre strip Insert your hand into the top of the backrest covering and lift outward -arrow-6-5-  . See Fig 1 .
