Installing covering for backrest centre strip

WARNING: This page is about a different variant/trim than selected.

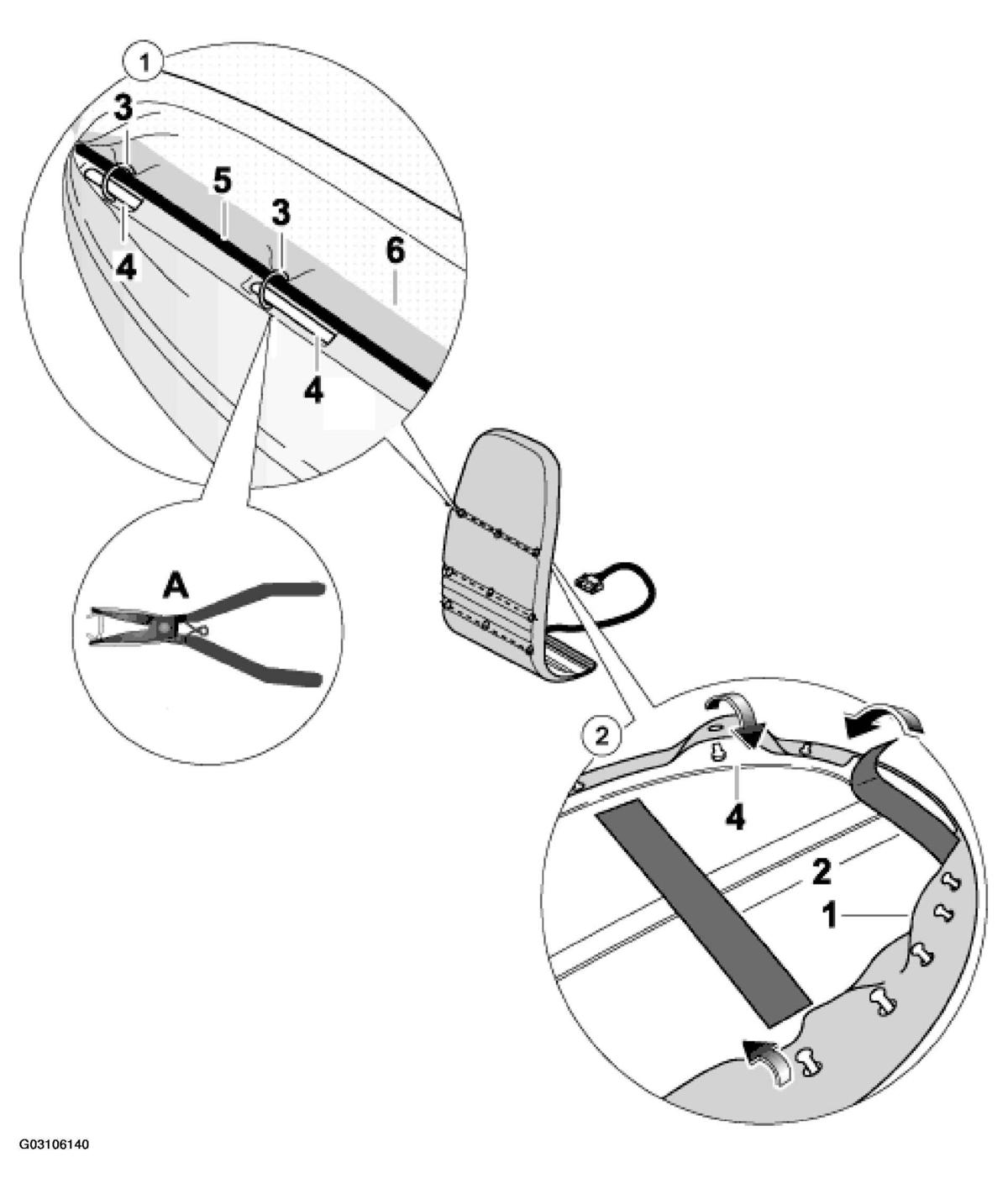

Fig 1: Installing Covering For Backrest Centre Strip - As Of MY 1997

Courtesy of PORSCHE OF NORTH AMERICA, INC.

BACKREST CENTRE STRIP COVERING INSTALLING PROCEDURE - AS OF MY 1997

No.	Procedure	Instructions
1	Placing the cushion clips	Position backrest centre strip -6-4-5-4-A-3- . See Fig 1 .
2	Engaging the backrest centre strip	Attach the covering for the backrest centre strip -1-4-4-2- . See Fig 1 .
	Installing the backrest centre strip	See INSTALLING THE BACKREST CENTRE STRIP .
