Installing the backrest centre strip

WARNING: This page is about a different variant/trim than selected.

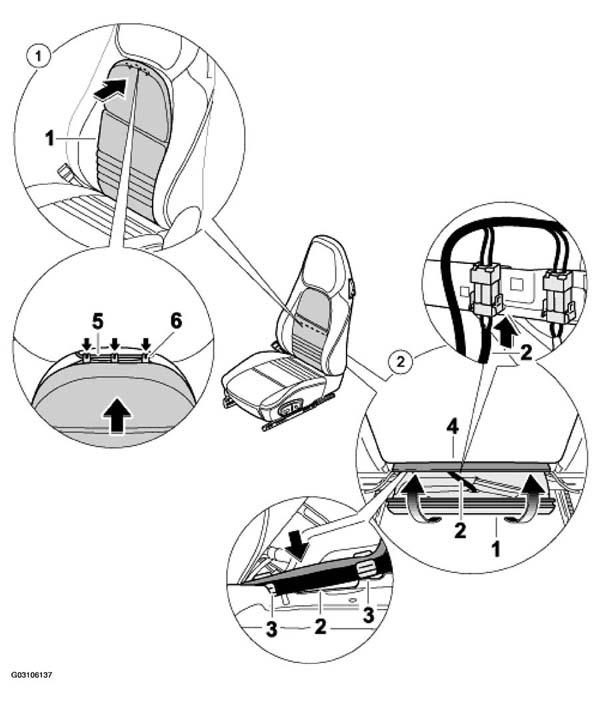

Fig 1: Installing Backrest Centre Strip - As Of MY 1996
G03106137Courtesy of PORSCHE OF NORTH AMERICA, INC.
BACKREST CENTRE STRIP INSTALLING PROCEDURE - AS OF MY 1996

No.  Procedure  Instructions
1 Clipping in the backrest centre strip at the top Press the bead -6-5-  . See Fig 1 .
2 Attaching the backrest centre strip at the bottom, inserting electrical plug connection Attach backrest centre strip -1-4-2-3-  . See Fig 1 .
