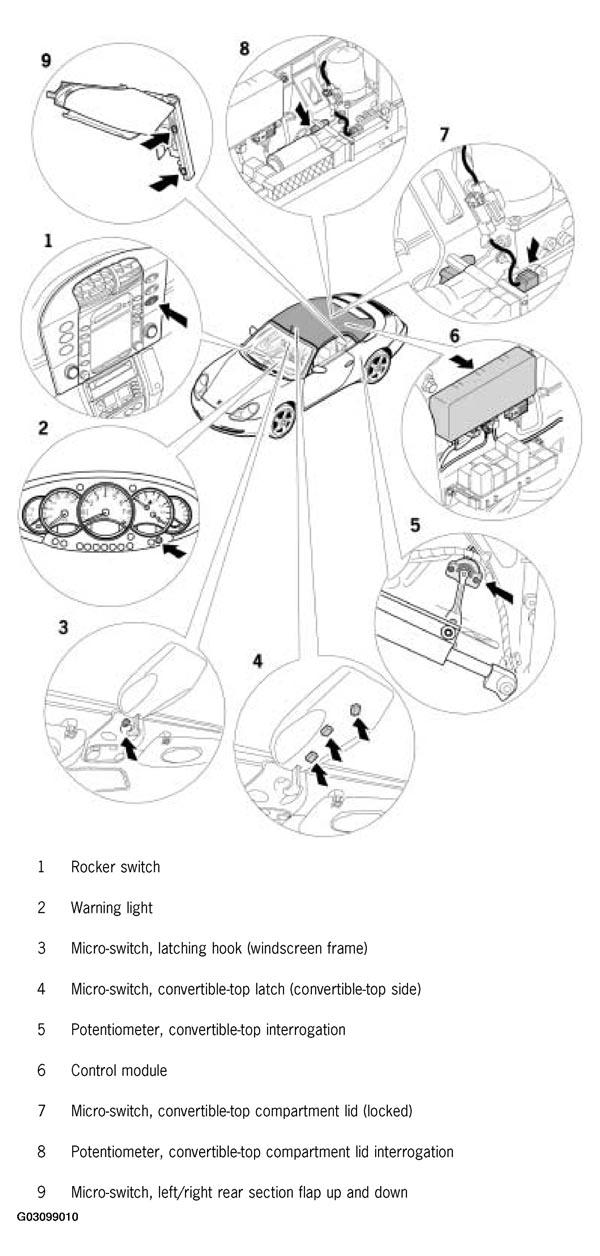

Overview of convertible-top components
WARNING: This page is about a different variant/trim than selected.
The convertible top is actuated if:
- Terminal 15 is connected via ignition.
- The parking brake input is connected to ground (parking brake engaged).
- No speedometer signals greater than 5 km/h (3 mph) are present.
- Engine compartment lid is closed (input not at ground potential).
